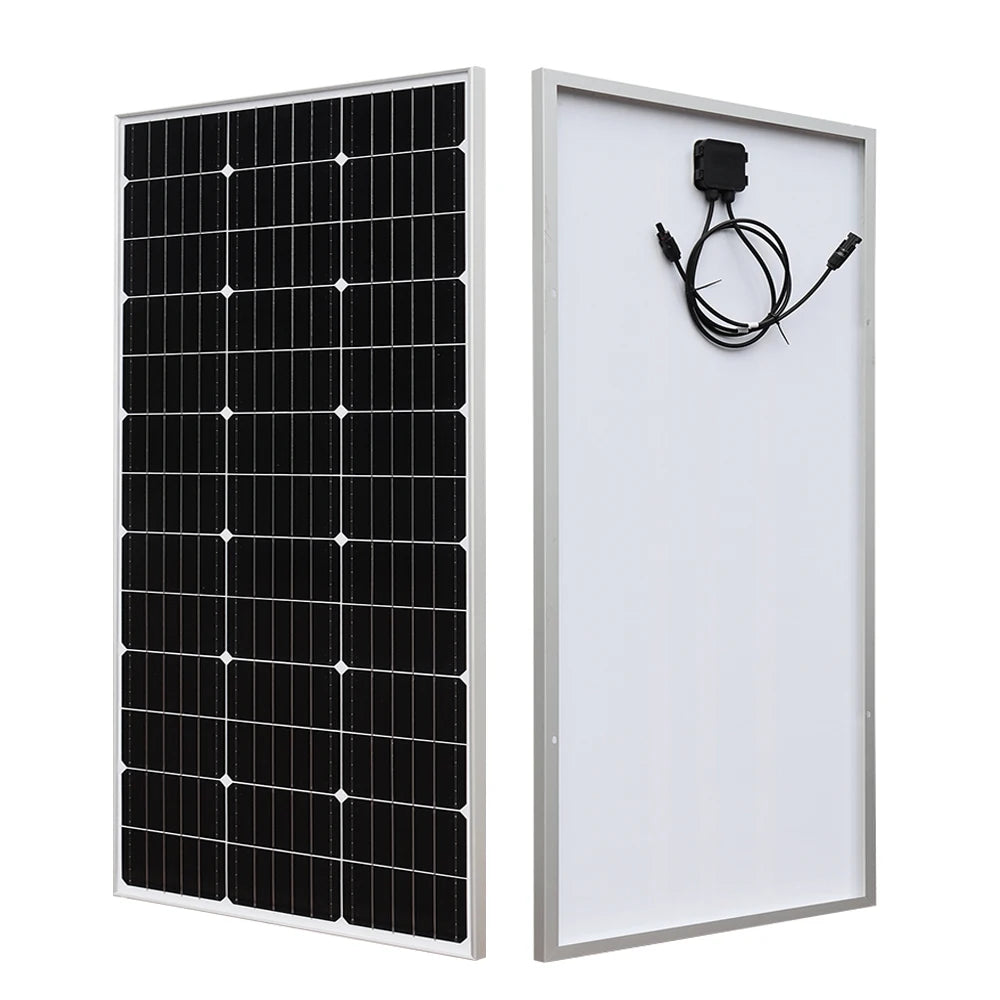

Rigid Glass Solar Panel 150W / 300W Monocrystalline Cell PV Photovoltaic Module 12v 24v Battery / plug and play system Yacht home camping Balcony Car

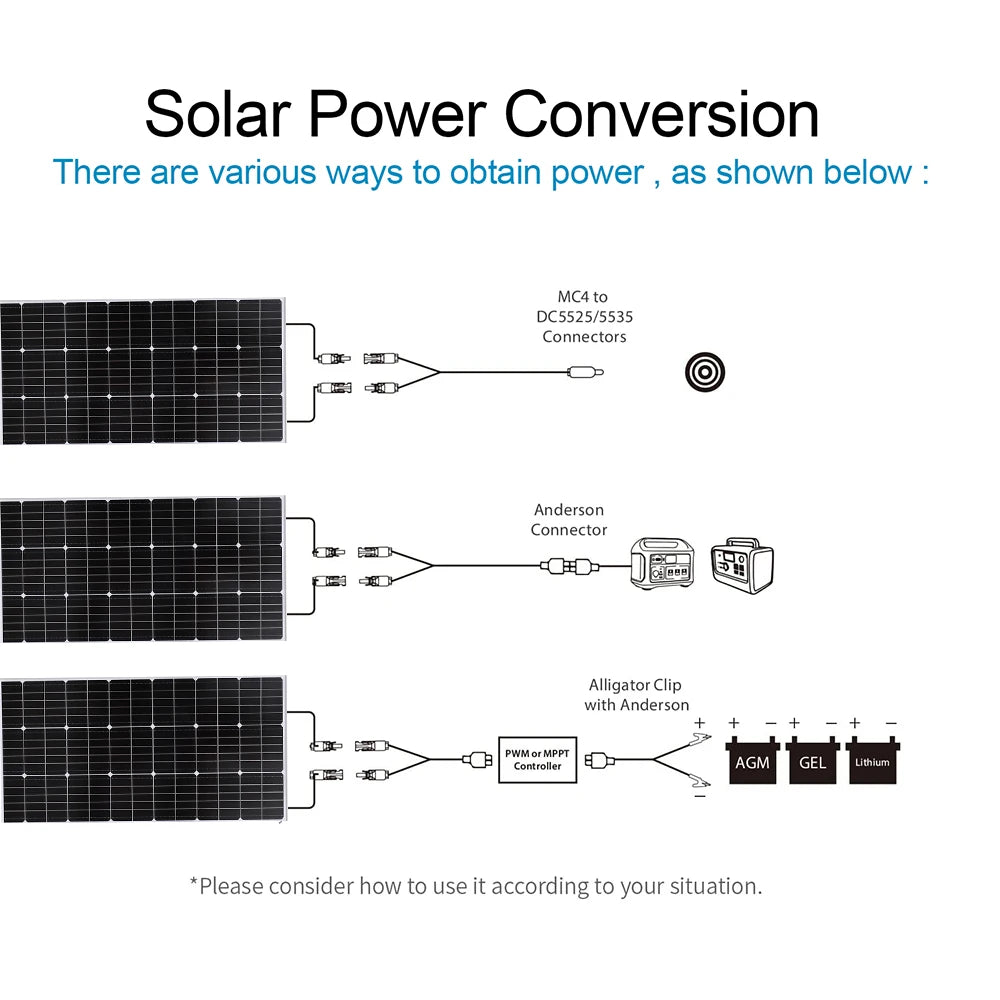

Glass solar panels with aluminum frame can be assembled into off-grid solar panel systems.
Can also be assembled into grid-connected solar panel systems (feed-in solar panel systems / home grid systems)

Can be connected to lithium batteries or lead-acid batteries

Pcaking list

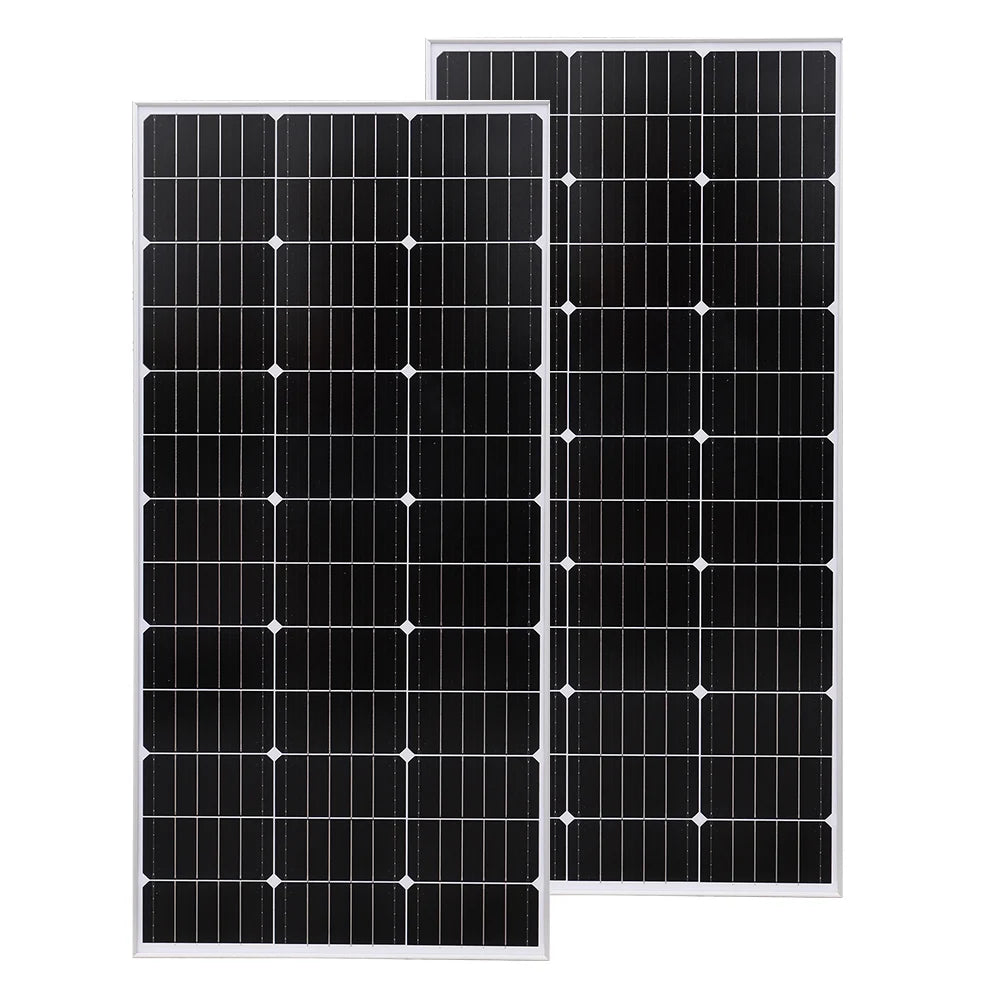

2pcs glass solar panels

OR

Pcaking list

1pcs glass solar panels

150 W Solar Panel

Maximum power (Pmax) : 150 W

Maximum system voltage: 700 V DC

Voc: 25.8 V

Maximum power voltage (Vmp) : 21.5 V

Short-circuit current (ISC): 7.66 A

Maximum operating current: 6.97 A

Cell type: Monocrystalline silicon cell-Module efficiency: 24%

Temperature range: -40 °C ~ + 80 °C

Number of cells: 39 pieces-Weight: 6662G-Dimensions : 1140 × 530 × 25mm. Cable length: 90 cm

Standard test conditions (STC) : Irradiation power: 1000 W/m², temperature: 25 °C, AM = 1.5

Operating temperature（NOCT） 45±2℃

Features:

a. Select high-efficiency monocrystalline silicon solar cells, the power generation efficiency is about 1.2 times that of conventional polysilicon, and the overall area is smaller at the same power.

B. Surface toughened glass has high light transmittance, improves power generation efficiency, and has a longer life.

c. It has high light transmittance, safe and reliable, not afraid of high temperature, no danger of burning or explosion.

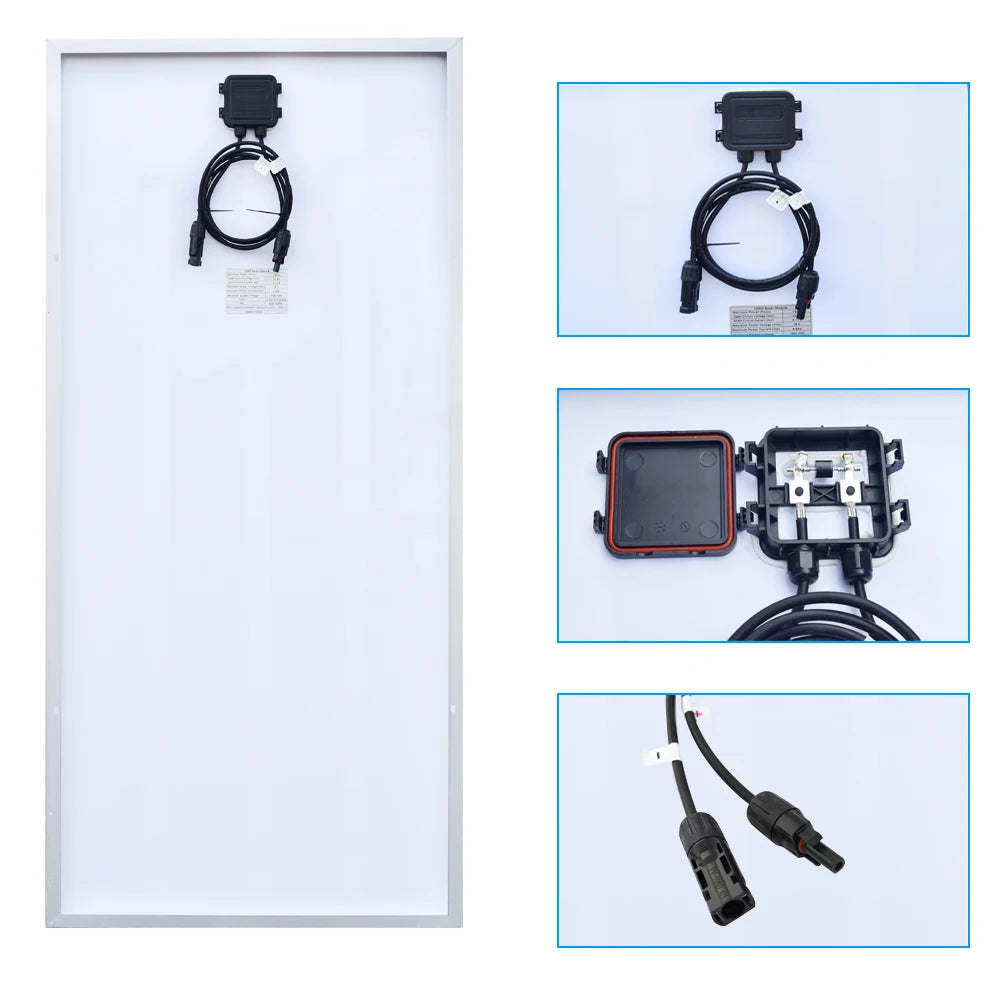

d. The junction box adopts IP67 waterproof design, contains bypass diode, and the circuit adopts overcharge and reverse current protection design.

e. Use photovoltaic special cable and PV connector, outdoor use is safe, waterproof, high temperature resistance and weather resistance, PV connector is easy to use, plug and play.

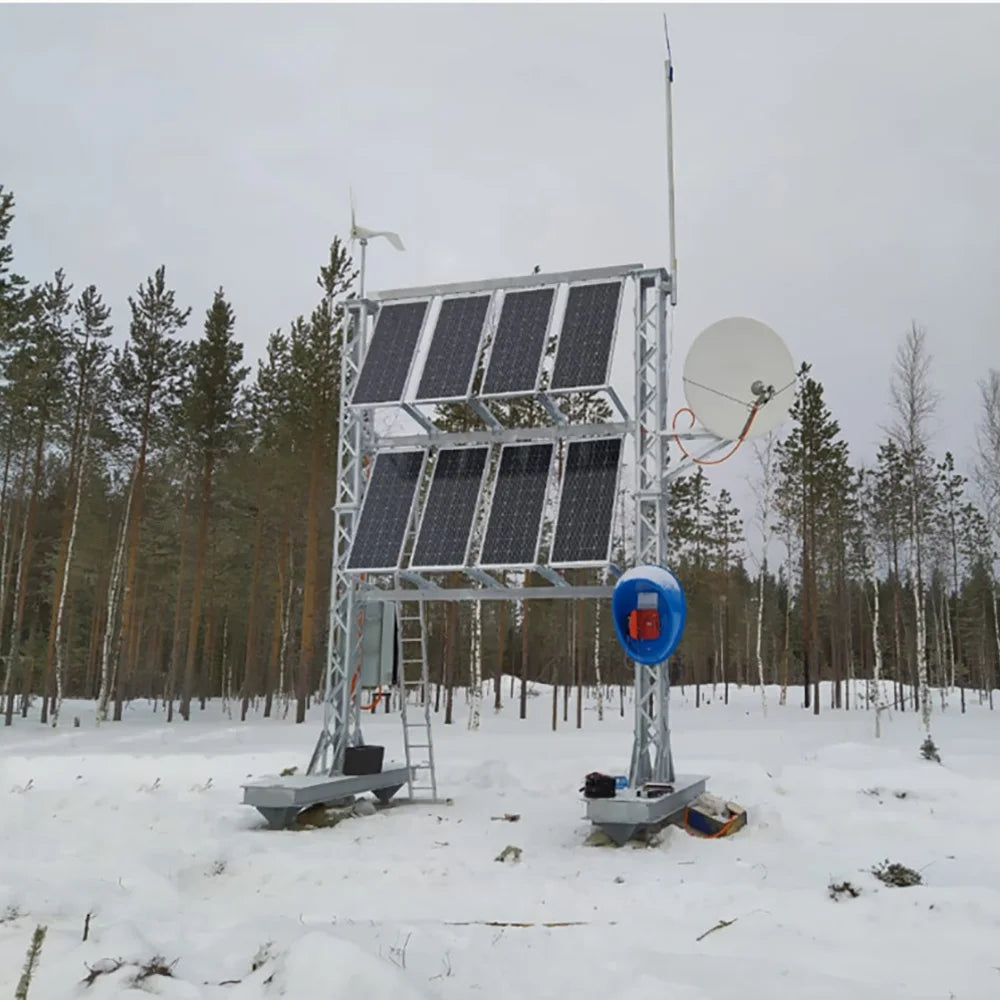

f. This product is a solar module. It is recommended to be used with controllers and batteries. It can be used in various scenarios such as households, camping, RVs, yachts, street lights and solar power stations.

Notes for use

Notes for use

a. This product must not come into contact with highly corrosive substances.

b. It is strictly forbidden to modify, disassemble, drop, and hit the junction box and products by yourself, avoid stepping on the surface and scratching the surface with hard objects during use.

c. A large number of scratches or dirt on the surface of the solar panel may cause the solar cell module to be inefficient, and in severe cases may cause burnout.

d. The suitable ambient temperature range of this product: -20 ° C-80 ° C, please do not exceed this range.

e. The solar panel must be installed in an area with good sunlight and no shadow. The long-term work of the solar cell module in the sun with shadow may have the risk of burning.

f. It is forbidden to connect the positive and negative poles of the product together, and it is forbidden to put the product into water or fire, otherwise it will damage the product.

g. The overall power of the photovoltaic module must be less than the rated power of the controller (rated voltage × rated current). It is strictly prohibited to overload the controller.

h. The total voltage of the photovoltaic module connected to the controller must be within the photovoltaic input voltage range of the controller.

i. The inverter can only be connected to the battery, not directly to the controller.
