PWM 10–30A Solar Charge Controller 12V/24V
-
Estimated Delivery:Oct 25 - Oct 29
PWM 10–30A Solar Charge Controller 12V/24V
SPECIFICATIONS
Application: Charger Controller,Voltage Controller,Solar System Controller
Brand Name: NoEnName_Null
Certification: CE,FCC,RoHS
Choice: yes
Compatibled With battery type: Lifepo4 Lithium GEL Lead Acid battery
Compatibled With battery voltage: 12V or 24V
Hign-concerned Chemical: None
Is Smart Device: No
Max. PV input: 50V(24V battery) 25V(12V battery)
Maximum Current: 30A
Model Number: 10A 20A 30A Solar Charge Controller
Origin: Mainland China
Suggestion solar panel Current: 10A,20A,30A
USB output: 5V2A
charging method: PWM
is_customized: Yes
semi_Choice: yes

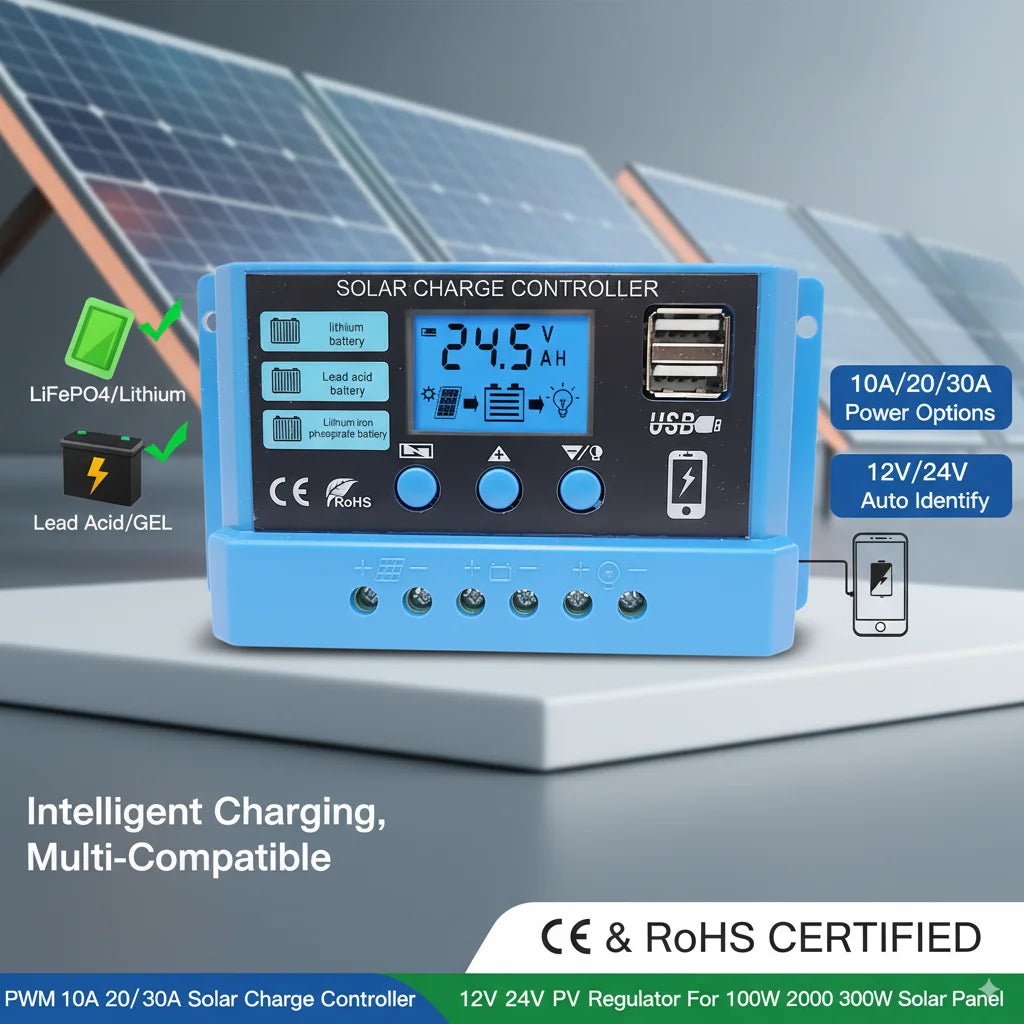

PWM 10A 20A 30A Solar Charge Controller 12V 24V PV Regulator For Lifepo4 Lithium GEL Lead Acid For 100W 200W 300W Solar Panel
Item Specific:
1.Build-in industrial micro controller.

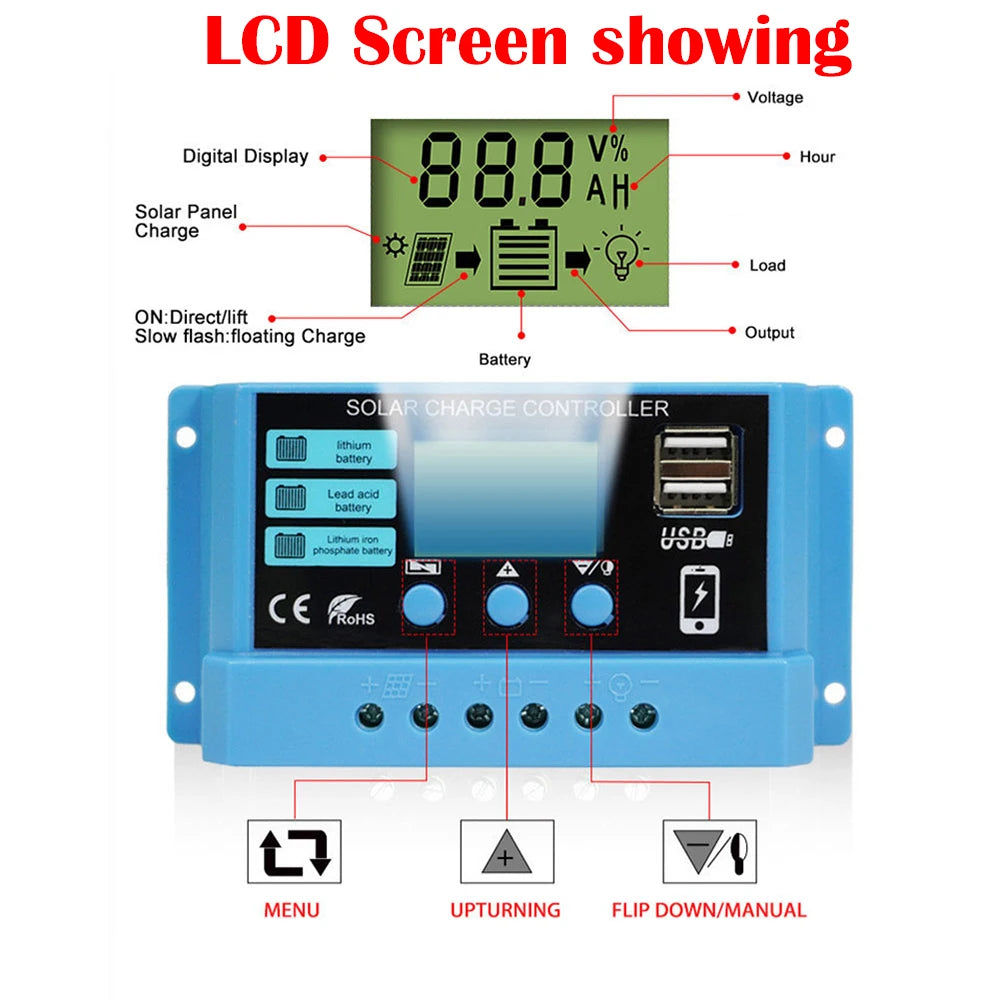

2.Big LCD display,all adjustable parameter.
3.Fully 4-stage PWM charge management.
4.Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.
This controller is a intelligent, multi-purpose solar charge and discharge controller. Fixed LCD display with a very friendly interface is used in this product; various control parameters can be flexibly set, fully meet your various application requirements.

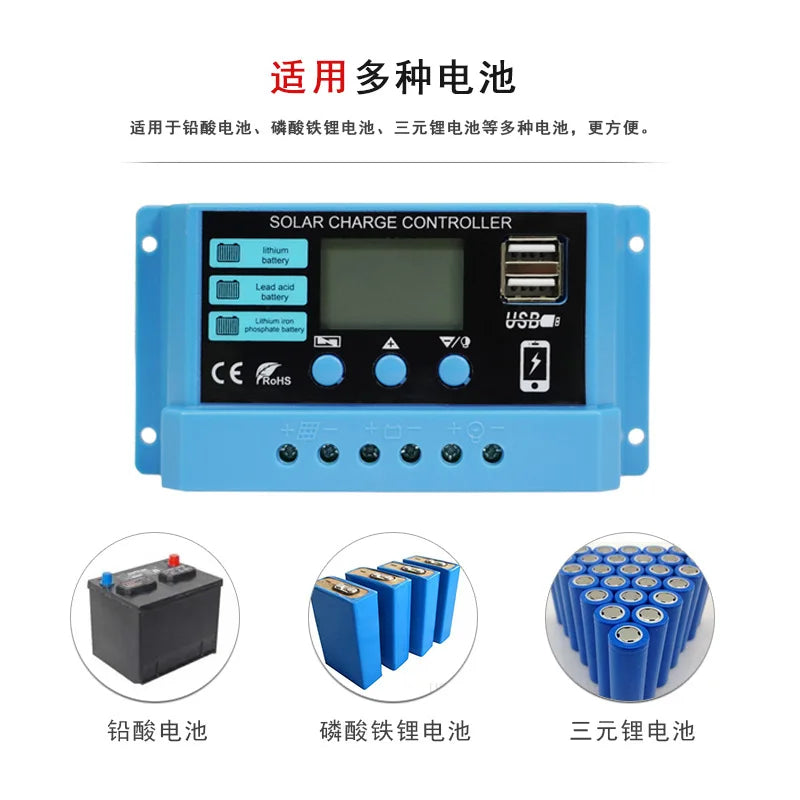

This is NEW Solar Controller ,It can fully meet your home Photovoltaic system(including home lighting system)requirements.It can recognize 12V and 24V Lead acid ,Gel battery, nickel metal hydride, lthium ions , Lifepo4 or other batteriesautomatically.
There are optional 10A 20A 30A model
10A:
if your battery is 12V ,the max solar panel input is 25V 120W
if your battery is 24V ,the max solar panel input is 50V 240W
20A:
if your battery is 12V, the max solar panel input is 25V 240W
if your battery is 24V, the max solar panel input is 50V 480W
30A
if your battery is 12V ,the max solar panel input is 25V 360W
Package Included:
Model |
PV-10A |
PV-20A |
PV-30V |
Rated charging current |
10A |
20A |
30A |
Rated discharge current |
10A |
10A |
10A |
MAX PV Volt |
12V system < 25V/24V system < 50V |
||
The USB output |
5V2AMAX |
||
Stand-by Current |
< 10ma |
||
Dimensions/Weight |

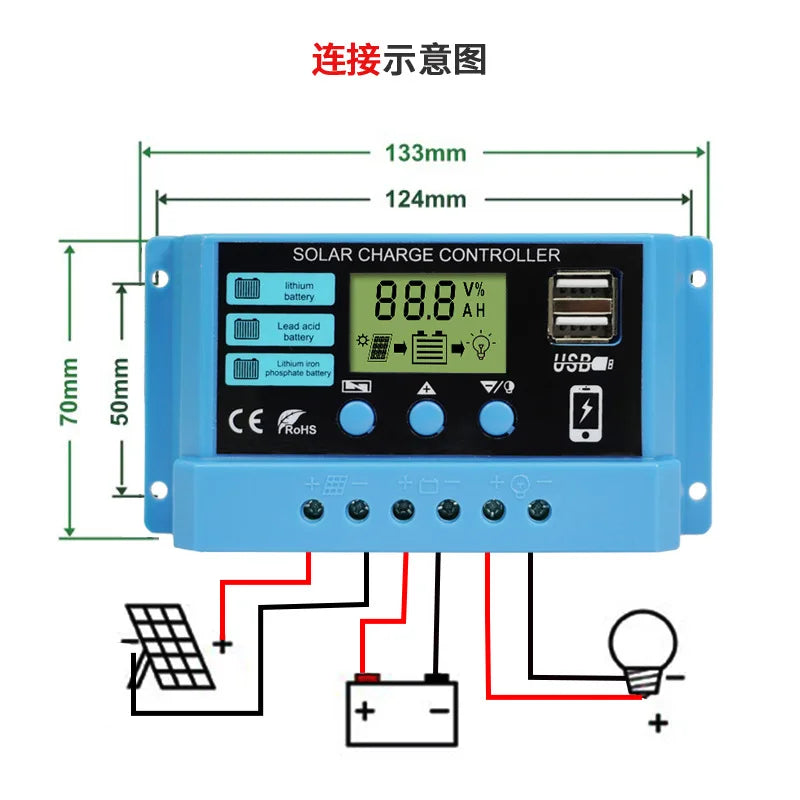

133 70*35mm/132g |
||
Work Temperature |
0~60C |
||
Battery Parameter
Lead-acid battery /BAT/ B1 | ||||||
System Volt |
12V system |
24Vsystem |
48Vsystem |
|||
Float charging Volt |
Default 14.4V |
adjustable range |
Defaut 28.8V |
adjustable range |
Defaut 57.6V |
adjustable range |
Discharge cut-off Volt |
Default 10.7V |
adjustable range |
Dofaut 21.4V |
adjustable range |
Defaut 42.8V |
adjustable range |
Discharge recovery Volt |
Defaut 12.6V |
adjustable range |
Defaut 25.2V |
adjustable range |
Defaut 50.4V |
adjustable range |
Ternary lithium battery /LIT1/ B2 | ||||||
System Volt |
12V system 3 strings |
24V system 7 strings |
48V system 13 strings |
|||
Float charging Volt |
Defaut 12.6V |
Unadjustable |
Defaultl 29.4V |
Unadjustable |
Default 54.6V |
Unadjustable |
Discharge cut-off Volt |
Defaut 9V |
adjustable range |
Detfault21V |
adjustable range |
Default 39V |
Adlustable range |
Discharge recovery Volt |
Defaut 10.5V |
adjustable range |
Default24. 5V |
adjustable range |
Defaut 45.4V |
Adjustable range |
Lithium iron phosphate battery /LIT2/ B3. | ||||||
System Volt |
12V system 3 strings |
24V system 7 strings |
48V system 13 strings |
|||
Float charging Volt |
Defult 14.6V |
Unadjustable |
Default 29.2V |
Unadustable |
Default 58.4V |
Unaqustable |
Discharge cut-off Volt |
Detaut 11.8V |
Adjustable range |
Default 23.6V |
Adjustable range |
Detaut. 47.2V |
Adustable range |
Discharge recovery Volt |
Default 12.5V |
Adyustabie range |
Defaut 25V |
Adjustable range |
Default 50V |
Adjustable range |
