Gaiaray 100W/200W Portable Solar Generator UPS
-
Estimated Delivery:Oct 25 - Oct 29
Gaiaray 100W/200W Portable Solar Generator UPS
SPECIFICATIONS
AC Output Frequency: 50Hz/60Hz ±2Hz
AC Output Socket: Universal Socket
AC Output Voltage: 220V/110V±15%
Application: Home Energy
Battery Capacity: 76.8Wh/153.6Wh
Battery Number: 4
Battery specifications: LiFePO4
Brand Name: GaiaRay
Certification: CE,RoHS,UL
Display screen: Yes
Hign-concerned Chemical: None
Model Number: Portable Solar Power Bank
Nominal Capacity: 76.8wh/153.6wh
Number of cycles: 3000
Origin: Mainland China
Plug type: UK/EU/US according to your choice
Rated Power: 100W/200W
Replacement Battery: Yes
Set Type: Charger Sets
Shell material: ABS
Size: 160*100*143mm
Type: LiFePO4
feature 1: portable power station
feature 2: Solar generator
feature 3: Camping Charging Station
Rated Power |
100W |
200W |
Output Waveform |
Modified Sine Wave |
Modified Sine Wave |
AC Output Voltage |
220V/110V±15% |
|
AC Output Frequency |
50Hz/60Hz ±2Hz |
|
Conversion Efficiency |
Maximum Value>90% |
|
Charging Interface |
External Charger Port and Solar Panel Charging Port DC5521*1 (Built in solar intelligent controller) |
|
AC Output Socket |
Universal Socket |
|
DC Output Voltage |
1 USB output QC18W; 1 PD output maximum 20W; |
DC5V 2.4A, USB×1; DC12V3A, DC5521 Port×2; PD 20W×1; |
LED Light States |
LED bright, half-bright, flashing, LED off 4 states |
|
Battery Type |
LiFePO4 |
|
Battery Capacity |
12.8V 76.8Wh |
12.8V 153.6Wh |
Solar Panel Specifications |
15V-20V Maximum 50W (Optional) |
18V 45W (Optional) |
Charging Current |
Maximum Value2A |
Maximum Value 2A |
AC Charger Specifications |
15V1A |
15V2A |
AC Charger Charging Time |
After full discharge, battery capacity reaches 80% after 5 hours of charging |
|

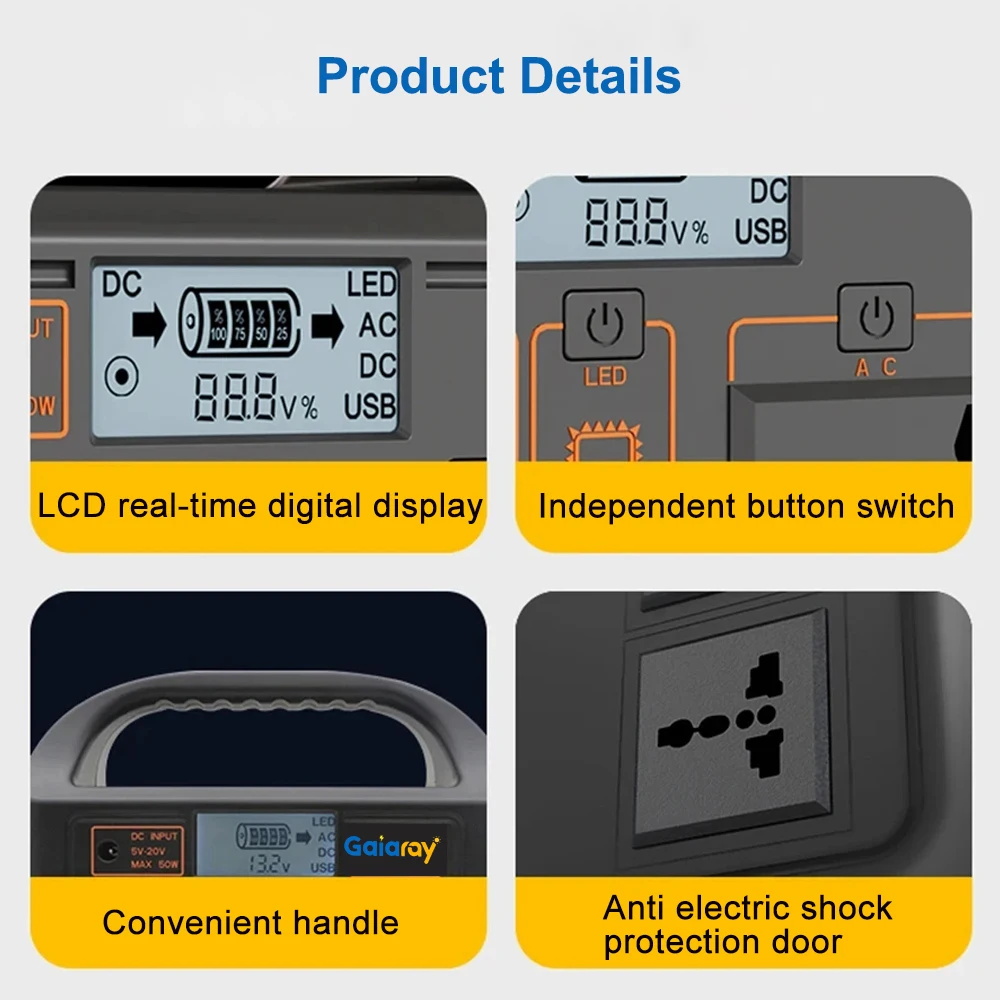

LCD Display |
Battery capacity, battery voltage, charging status, discharge status |
|
Heat Dissipation |
Automatic cooling |
|
Protective Function |
Low voltage, over voltage, overload, over temperature, over current short circuit |
|
Operating Environment Temperature |
-10～40℃ |
|
Operating Environment Humidity |
10～85% |
|
Storage Environment Humidity |
5～90% |
|
Net Weight(kg) |
≈1kg |
≈1.75kg |
Product Size D*W*H(mm) |
160*100*143 |
180*130*185.5 |

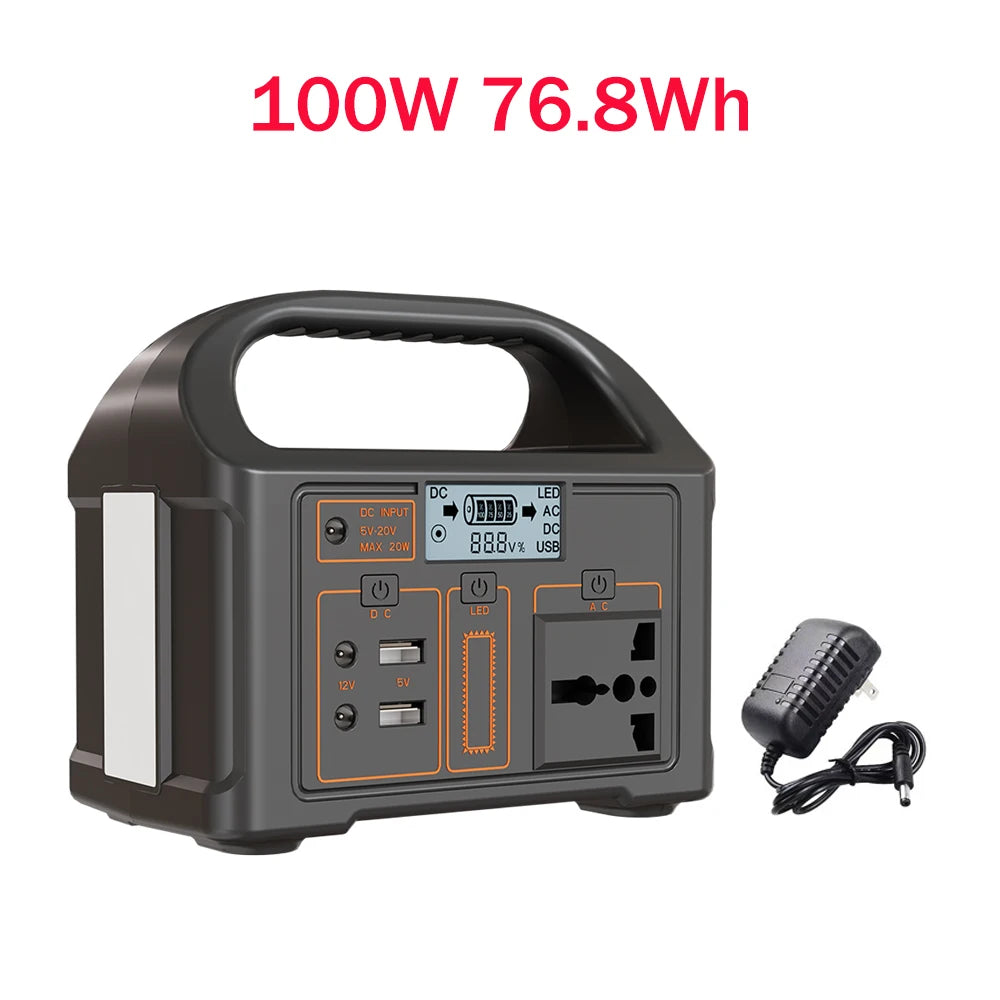

100W Power Station
* Rated power: 100W
* AC output voltage: 220V ±15%
* AC output frequency: 50Hz/60Hz ±2Hz
* Conversion efficiency: maximum value>90%
* Charging interface: external charger interface and solar panel charging interface DC5521*1 (built-in solar intelligent controller)
* AC output socket: universal seat
* DC output voltage: DC5V 2.4A, 2*USB; DC12V3A, 2*DC5521
* LED light: The LED light is high on, the LED light is half on, the LED light flashes, and the LED light is turned off in 4 states
* Product Size W*D*H(mm) :160*100*143
* Net weight: 1kg

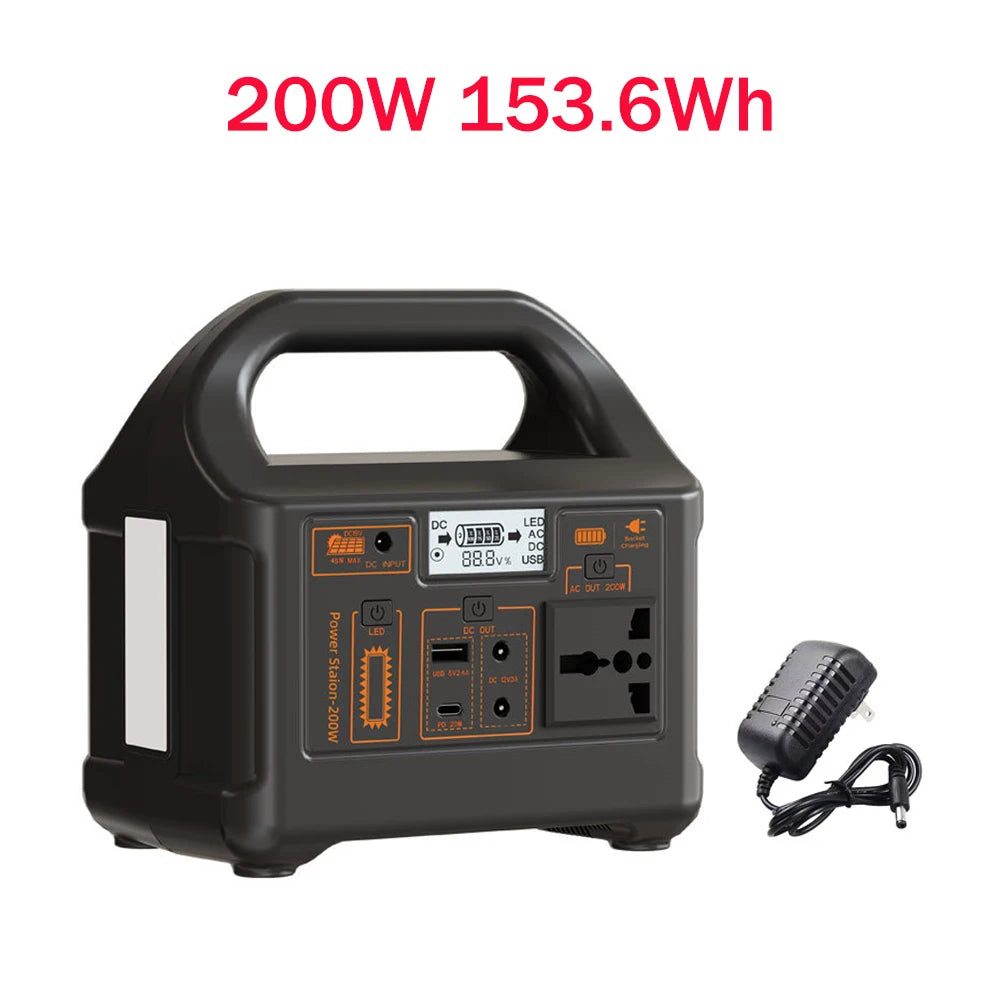

200W Power Station
*Rated power: 200W
*Battery Type：LiFePO4
*Battery Capacity：12.8V 153.6Wh
*Output waveform: correction wave
*AC output voltage: 220V ±15%
*AC output frequency: 50Hz/60Hz ±2Hz
*Conversion efficiency: maximum value>90%
*Charging interface: External Charger Port and Solar Panel Charging *Port DC5521*1(Built in solar intelligent controller)
*AC output socket: universal seat
*DC output voltage: DC5V 2.4A, USB×1; DC12V3A, DC5521 Port×2; PD 20W×1;
*LED light: LED bright, half-bright, flashing, LED off 4 states
*Charging Current：Maximum Value 2A
*AC Charger Specifications：15V 2A

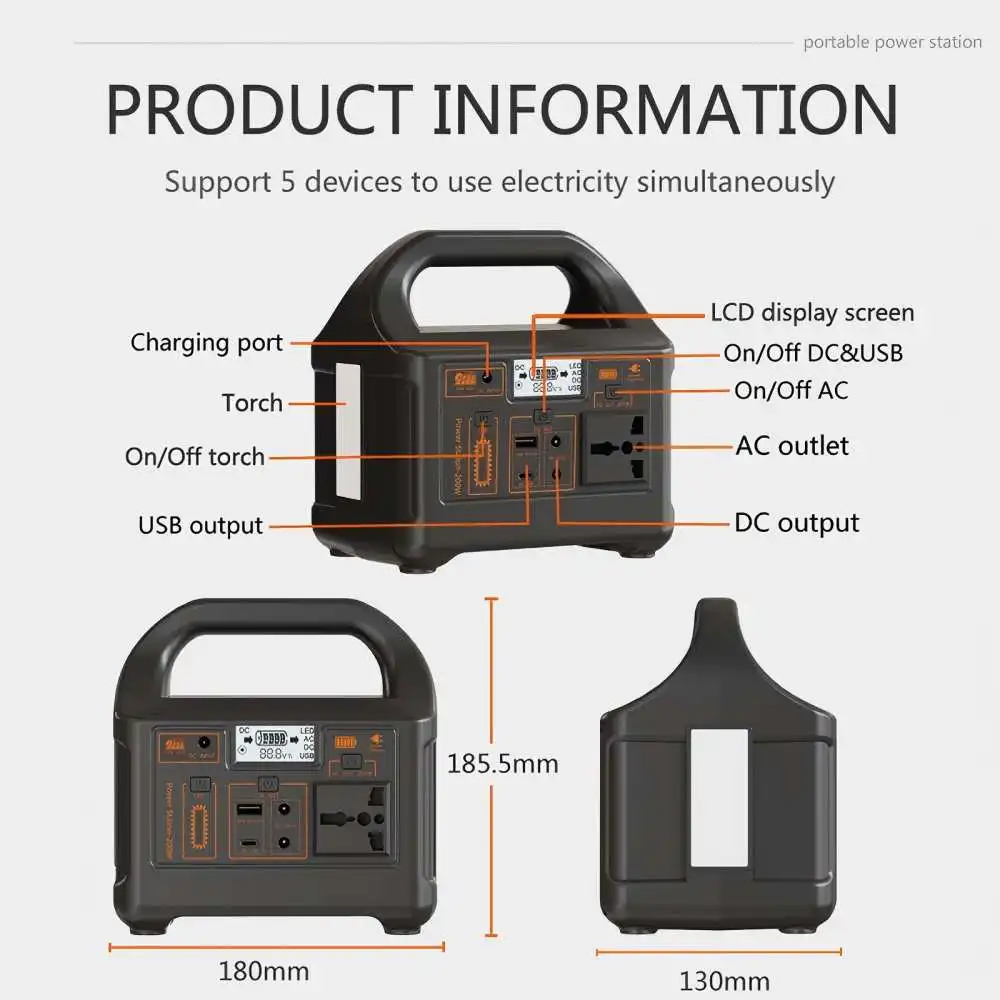

*Product Size W*D*H(mm) :180*130*185.5
*Net weight: 1.75kg
【High Quality LiFePO4 Battery】
The power generator is equipped with a Lithium Iron Phosphate battery that guarantees over 3000+ charge cycles. This high-quality power battery pack ensures a longer lifespan and safer use.
【 Large Capacity & Versatile Use】
With a substantial 76.8Wh/153.6Wh capacity, the portable solar power station caters to a wide array of situations, from outdoor camping and self-driving tours to fulfilling household emergency needs during power outages. Stay powered up anywhere, anytime.
【3000+ cycles 】
Approximately equal to 3 years of full capacity use
【3 charging methods】
Indoor and outdoor flexible energy replenishment, MAINS charging, car charging, solar charging
【Safe and Efficient】
The portable outdoor generator prides itself on safety and efficiency. It provides fast charging and includes multiple safety protections, ensuring reliability and durability for outdoor use.
【LED Lighting & Diverse Output】

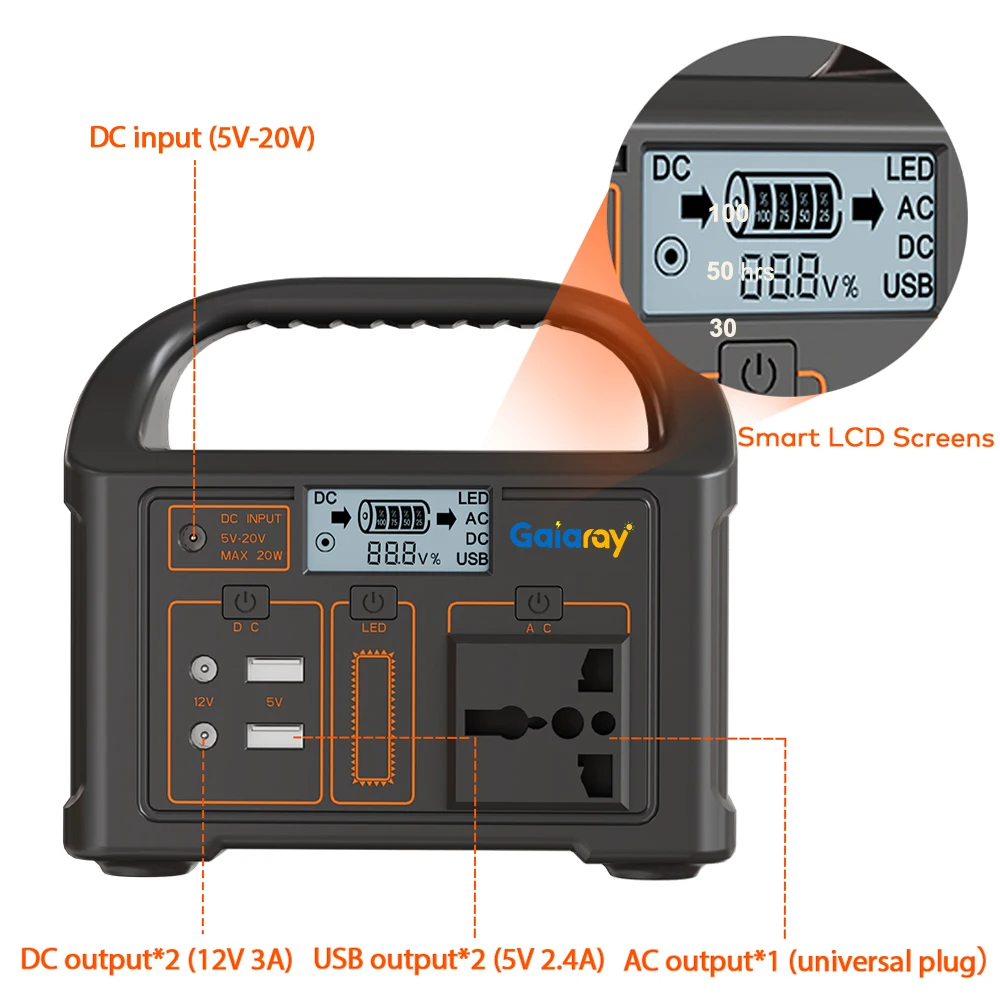

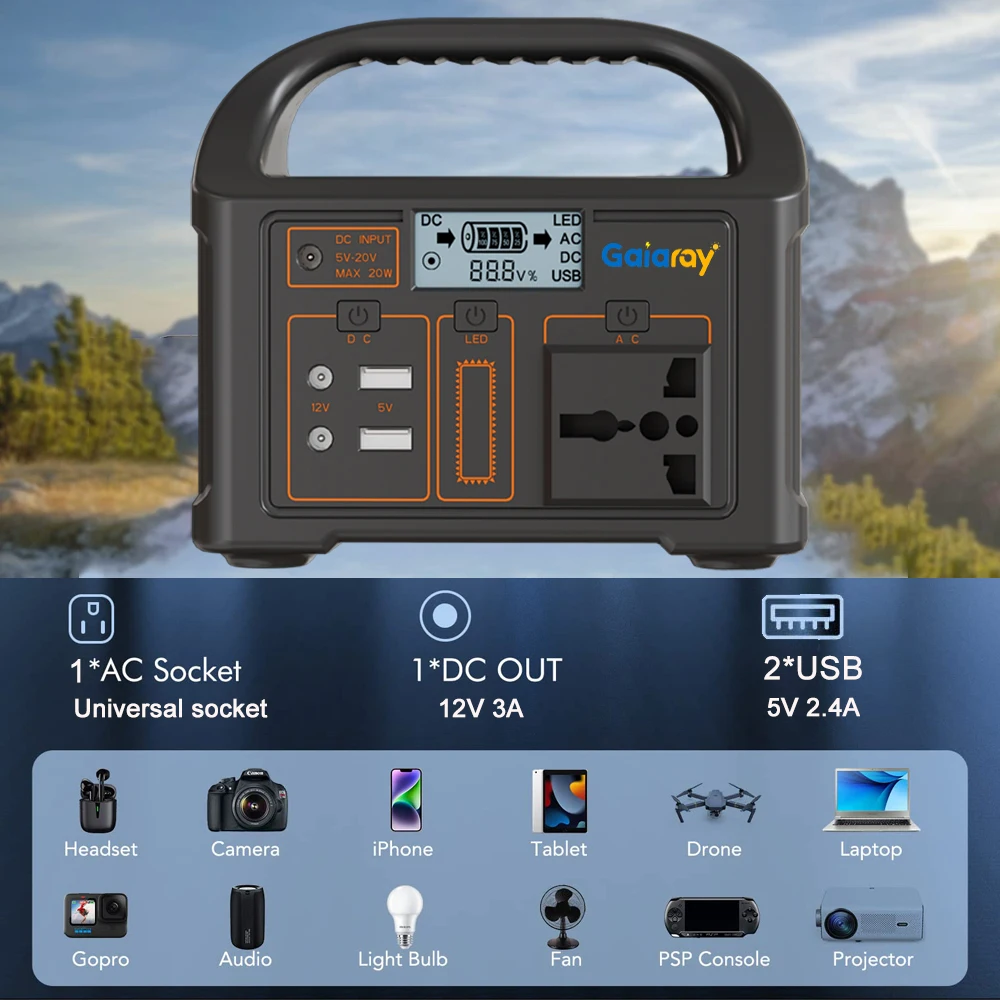

The outdoor power supply features LED lighting with four modes: high brightness, half brightness, flashing, and off. It provides a DC5V 2.4A dual USB output and a DC12V3A dual DC5521 output, catering to electronic and outdoor equipment, offering significant convenience.
【Compact and Powerful】
Improved over other products on the market, the outdoor camping power bank boasts a smaller volume and lighter weight while maintaining powerful functionality. It can power a variety of electronic devices, making it a convenient and reliable choice for outdoor use.
【Support UPS】
Indoor and outdoor uninterruptible power supply to meet your emergency power needs indoors and outdoors camping.

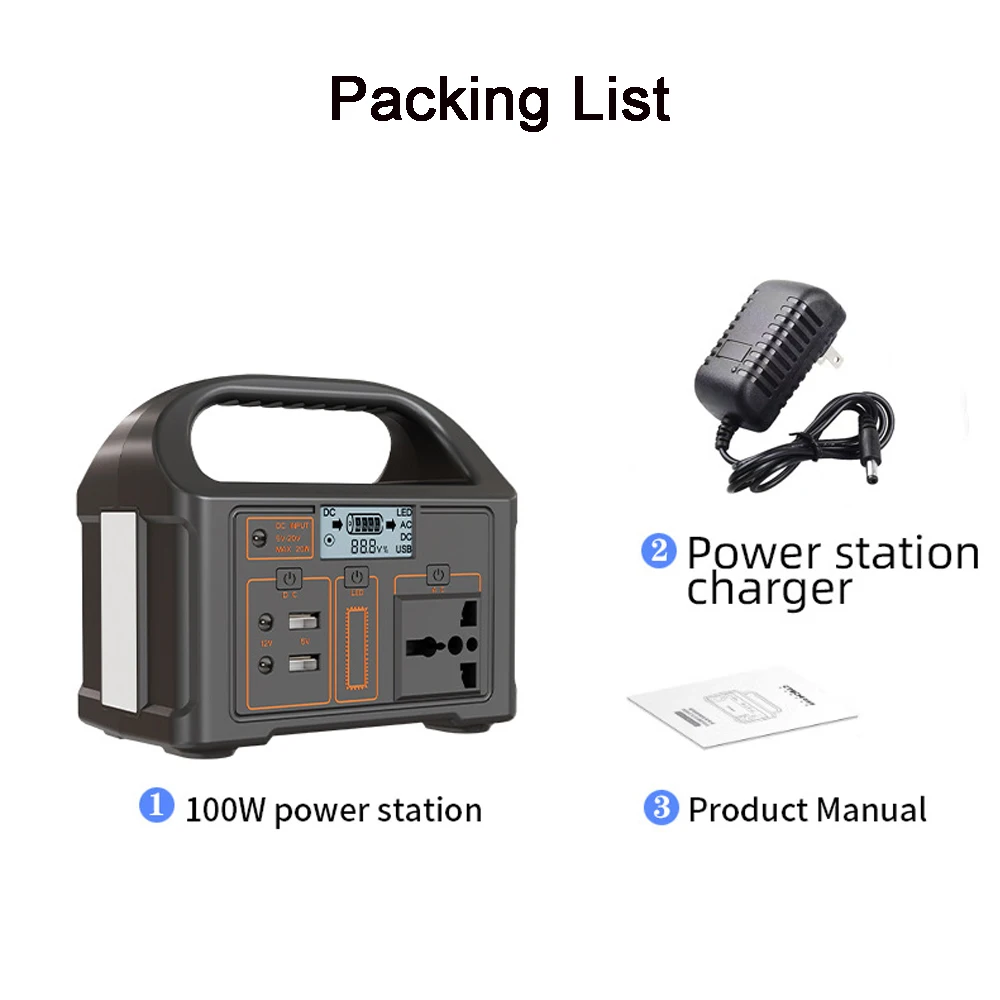

【Package List】
100W /200W Power Station*1
Charger (EU/US/UK plug optional)*1
Product Manual*1
