BOGUANG ETFE Semi- Flexible Solar Panel 150W 19.8V balcony photovoltaic PV 150 Watt Solar charge Panel Solar Cell for boat camper Roof car home camping 12v /24V battery (Solarp

Features:

* Conversion efficiency 24%.
* Generate electricity all day in the sun.
* Can be used for fish tank circulation system, monitoring group, household photovoltaic energy storage,
* Lightweight and easy to install.
* Outdoor photovoltaic power generation portable device.

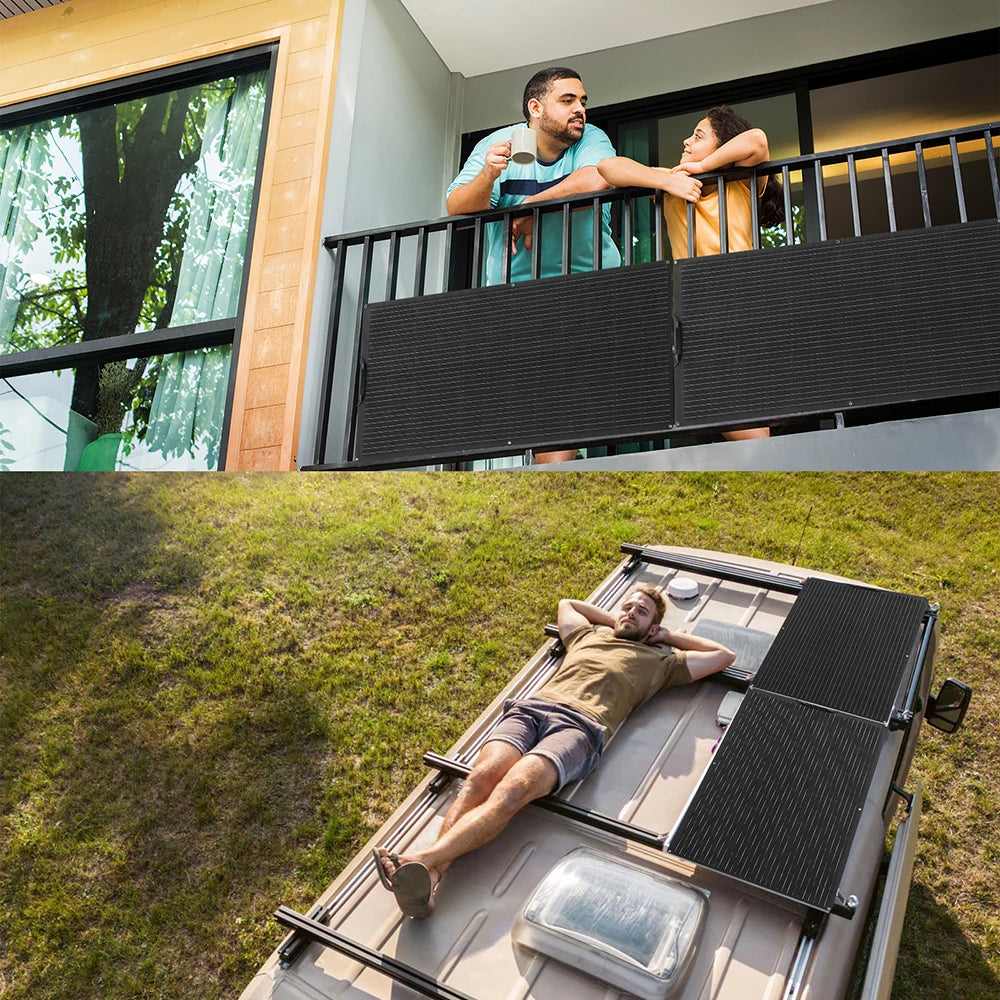

* Wide range of compatibility: sailboats, yachts, marine applications, motorhomes, expedition vehicles, commercial trucks, caravans, off-grid and telematics sites, etc.

ETFE Solar Panel Specification:

Maximum power (Pmax) 150W

Maximum system voltage 1000V DC

Open circuit voltage (cov) 23.76V

Short circuit current (Isc) 7.7A

Vmp 19.8V

Maximum power current(Imp) 7.35 A

Temperature range -40℃～+80℃

Cell Monocrystalline silicon cell

Number of cells 36 pieces

Cell efficiency 24%.

Weight 2.51 Bls

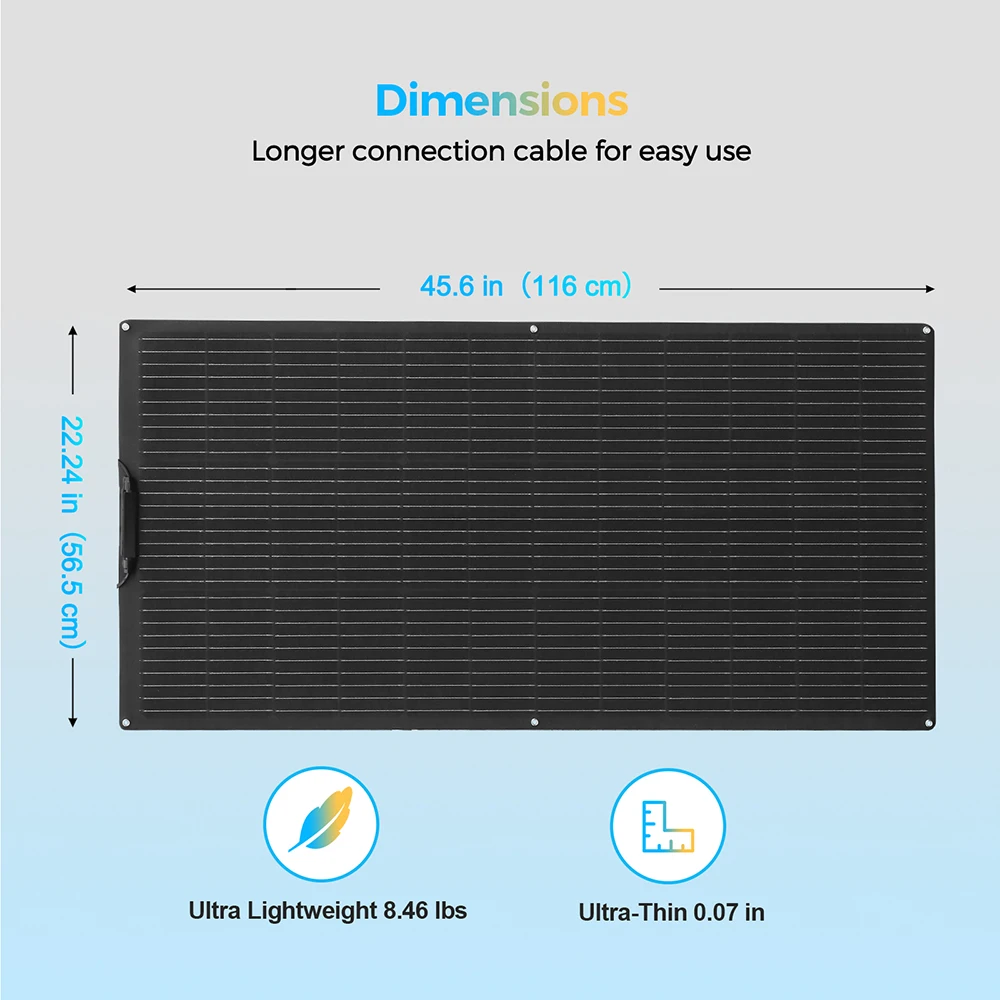

Size 1160*565*2.5mm

Standard test conditions lrradiance 1000w/m^2,Temperature 25℃, AM=1.5

Output port 0.9 m long MC -4 connector wire

LOW PROFILE, DURABLE AND EFFICIENT

Adventure BOGUANG Semi-Flexible solar panels are the perfect choice for a permanent 12V set up on your vehicle! They're low profile, durable and efficient.

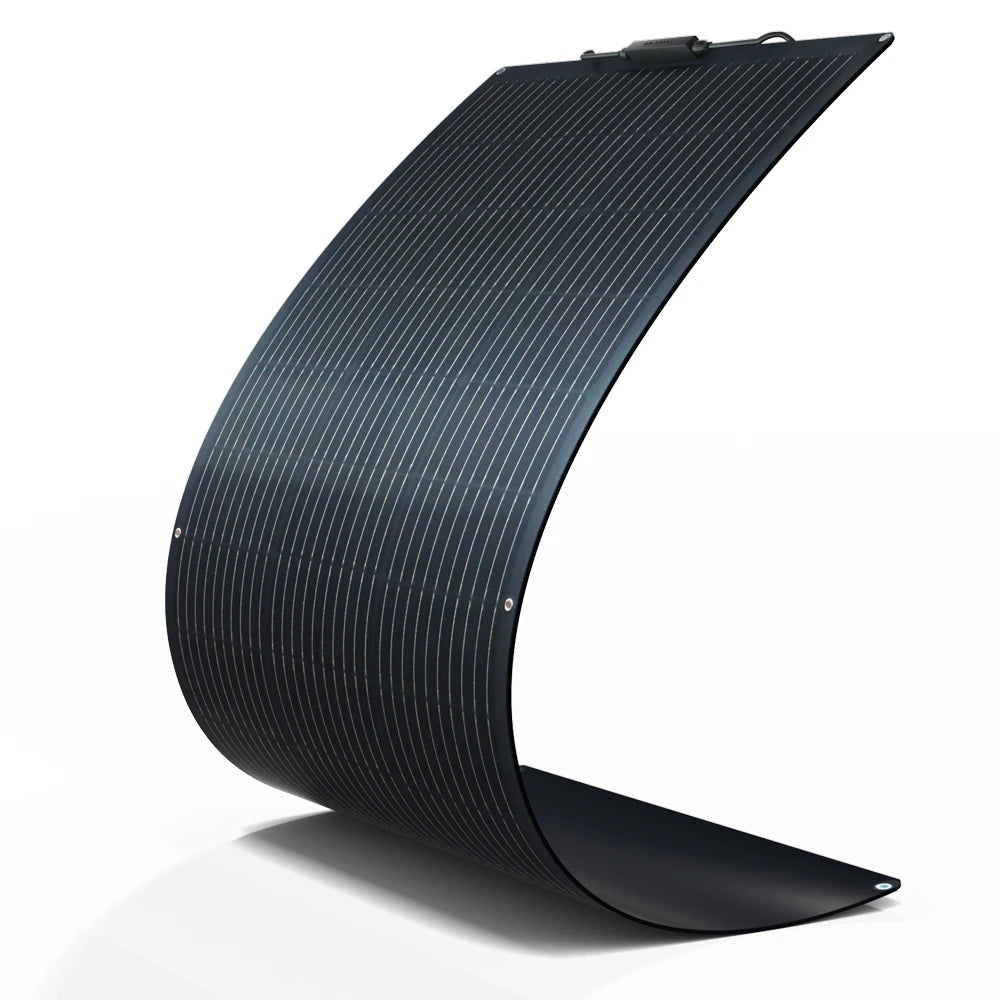

PERFECT FOR CURVED SURFACES

Designed so they can be easily fixed to your canopy, roof rack, trailer, caravan or even boat, these panels offer enough flex to be mounted on curves or uneven surfaces*.

HIGH QUALITY GRADE A MONOCRYSTALLINE SOLAR CELLS

Monocrystalline solar cells offer the best efficiency compared to polycrystalline or amorphous. Adventure BOGUANG take it a step further by only using the highest quality GRADE A cells for even higher efficiency and up output.

TOUGH AND EASY TO CLEAN

They’re constructed with tough and durable PET (PolyEthylene Terephthalate) which is polished smooth so it’s easy to clean. Adventure Kings Semi-Flexible Solar Panels also have built in bypass diodes that mean if one cell is dirty or shaded the others will continue working at maximum efficiency.

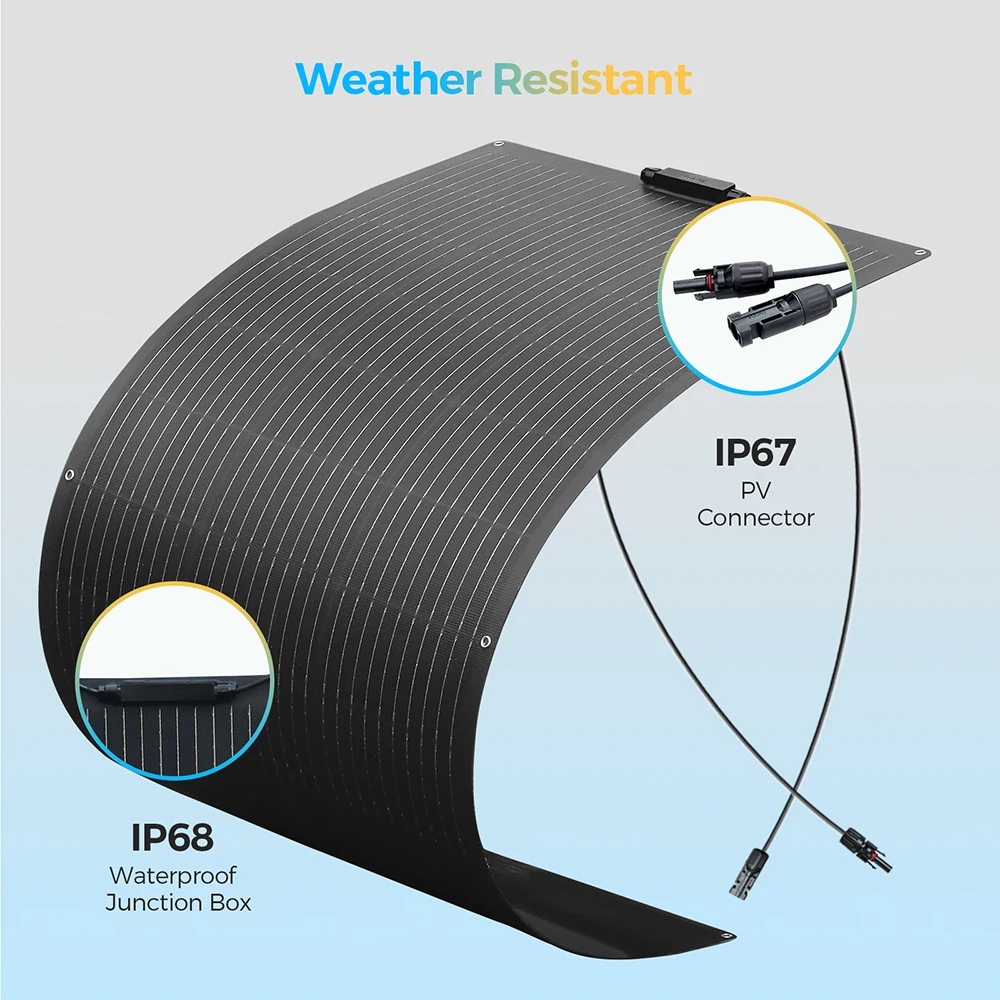

IP67 DUST + WATERPROOF RATING

Perfect for 4WDers and campers who use their rigs rain, hail or shine or even in salt-spray, beating sun and snow with an operating range of -40°C to +85°C and an IP68 dust and waterproof rating.

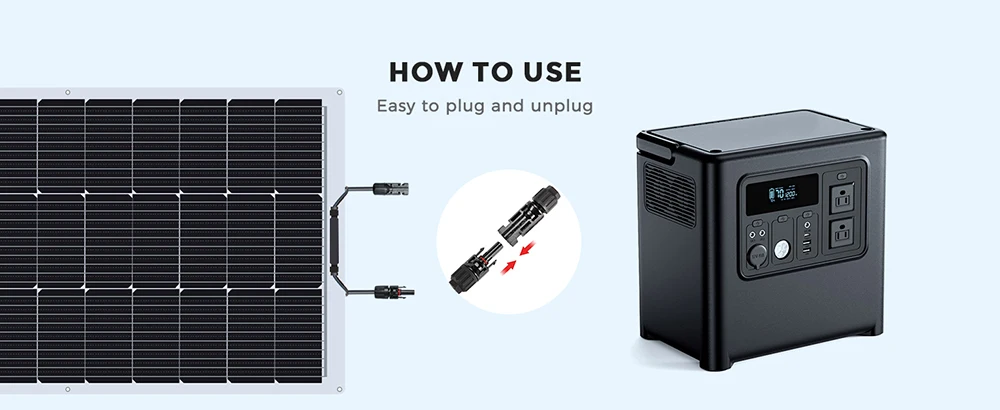

EASY TO INSTALL AND CONNECT

Easy to join up, with pre-connected PV plugs you can simply extend out the wiring and connect to your Adventure BOGUANG Solar Regulator or DC-DC charger (available separately) to instantly start your battery charging.

SUPER THIN AND LIGHTWEIGHT

Measuring in at 116cm by 565cm and 0.25cm thick (not including the small junction boxes) and weighing under 2.2kg, they’re a great choice where you want big power without sacrificing fuel economy, or don’t want any extra weight on your roof that may affect your centre of gravity.
