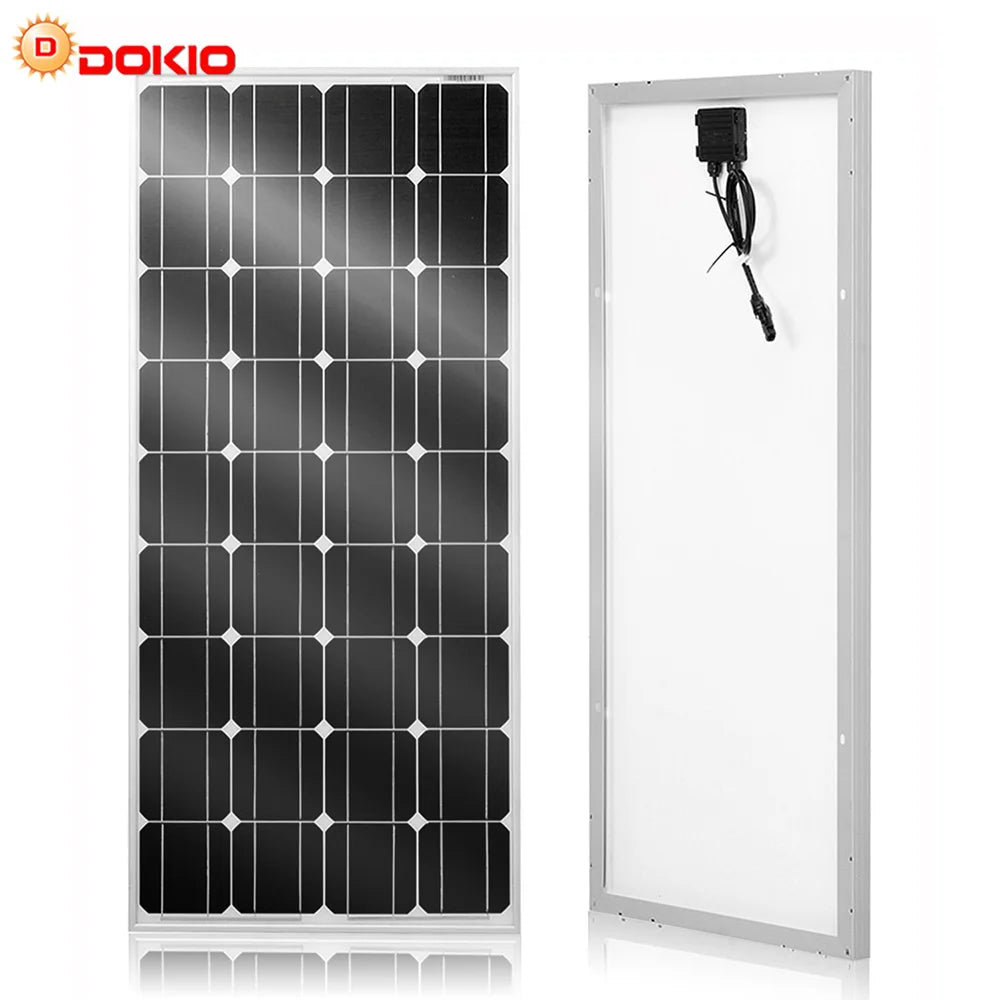

Dokio 100W 18V Monocrystalline Solar Panel
-
Estimated Delivery:Oct 25 - Oct 29
Dokio 100W 18V Monocrystalline Solar Panel
SPECIFICATIONS
Brand Name: DOKIO
Certification: CE
Factory Outlet: Yes
Flexible Solar Panel: No
Foldable Solar Panel: No
Hign-concerned Chemical: None
I mpp: 5.56A
I sc: 5.81A
Material: Monocrystalline Silicon
Max. Power: 100W
Model Number: DSP-100M
More data: Please visit the details
Net Weight: 7KG
New Style Size: 970x565x25mm
Nominal Capacity: None
Number of Cells: 36
Number of Panels: 1
Old Style Size: 1175x530x25mm
Origin: Mainland China
Quality: TUV Certified
Type: Solar Panel
Vmpp: 18.00V
Voc: 21.60v
is_customized: Yes
Delivery is not supported in the following areas:
1. Spanish island region. The zip code starts with "35" and "38".
Ukrainian warehouse supports local delivery.If you need solar panels, please contact store customer service,thank you.
Attention dear friends
We cannot change the corresponding picture of the product link yet.
Rigid solar panels in Spanish warehouse, new size and old size, random delivery
The products in other warehouses are all new sizes
If you mind the size problem, please do not place an order.
We cannot restrict the behavior of logistics. If you find that the product you receive is damaged, please contact customer service in time，thank you.
Product Description:
Model:DSP-100M
Material:Monocrystalline silicon
Maximum Power(Pmax):100W
Maximum Power Voltage(Vmp):18.00V
Maximum Power Current (Imp):5.56A
Open-Circuit Voltage (Voc): 20.5V
Short-Circuit Current (Isc):6.5A
Nominal Operating Cell Temp.(NOCT):-45 to 80℃
Maximum System Voltage:DC1000V
Maximum Series Fuse:15A
Dimension:97*56.5*2.5cm
Package Dimension:100*58*5.5cm
(The above data is based on the laboratory standard test environment)
For field connections,use minimun No.12AWG copper wires insulated for a minimum 90℃
Standard Test Conditions:
AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃
(The size is manually measured and there is a certain error.）

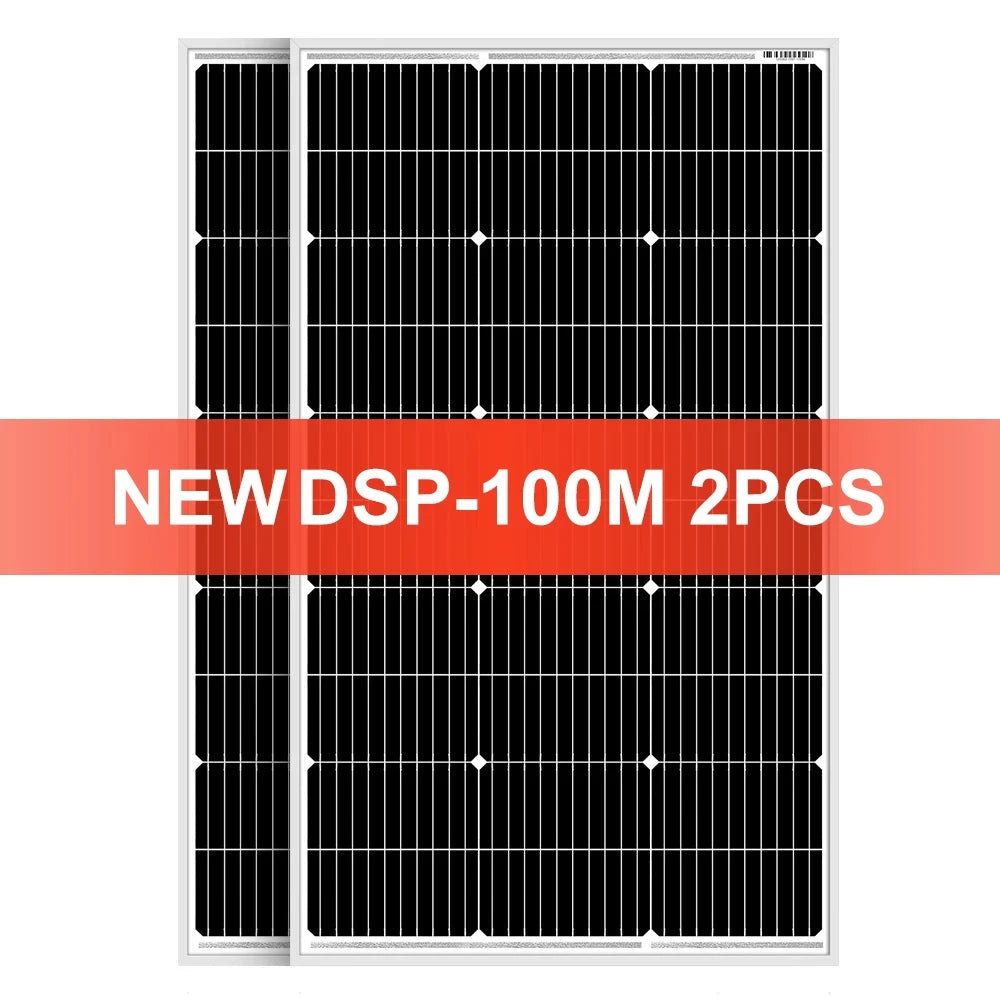

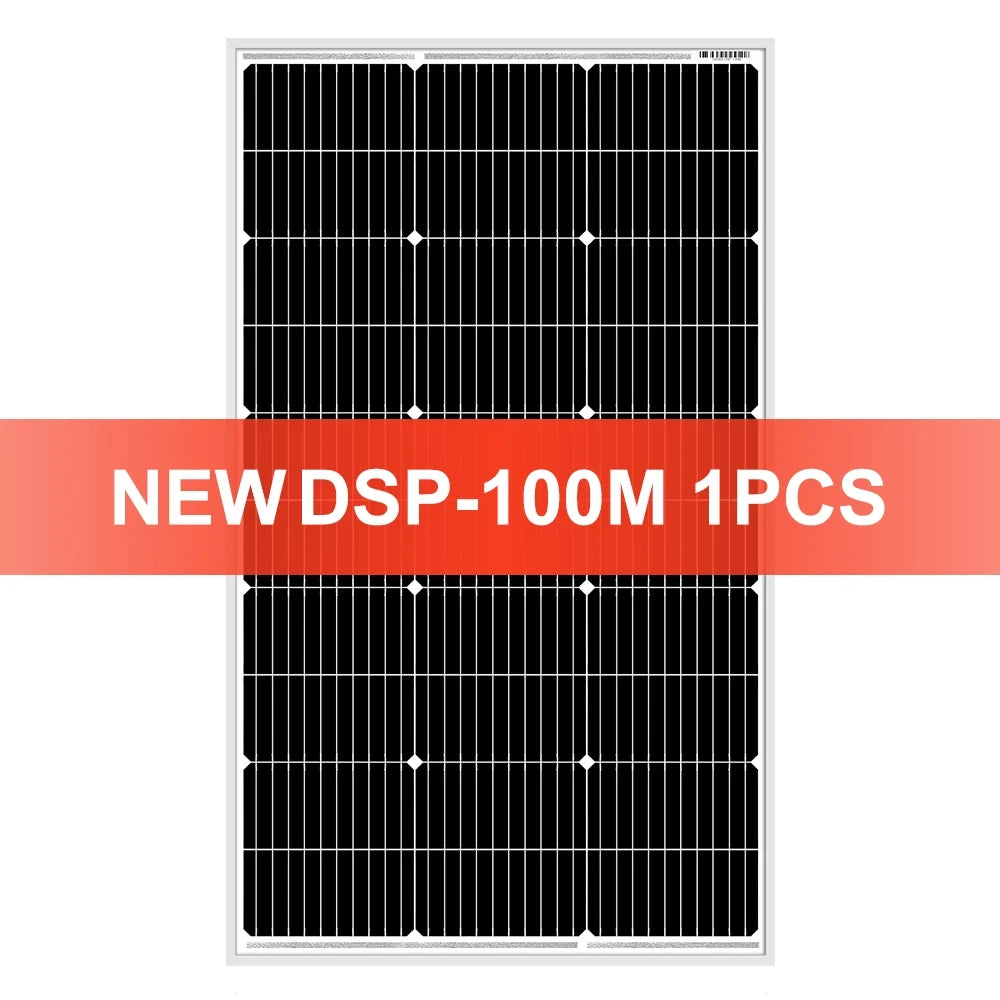

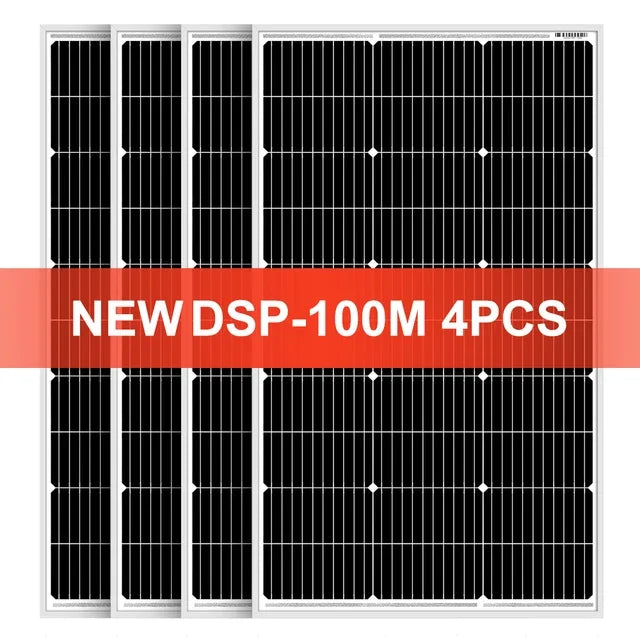

NEW SIZE !!!
Just for this panel,click on the image below to select the controller and cable.
Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.
We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
