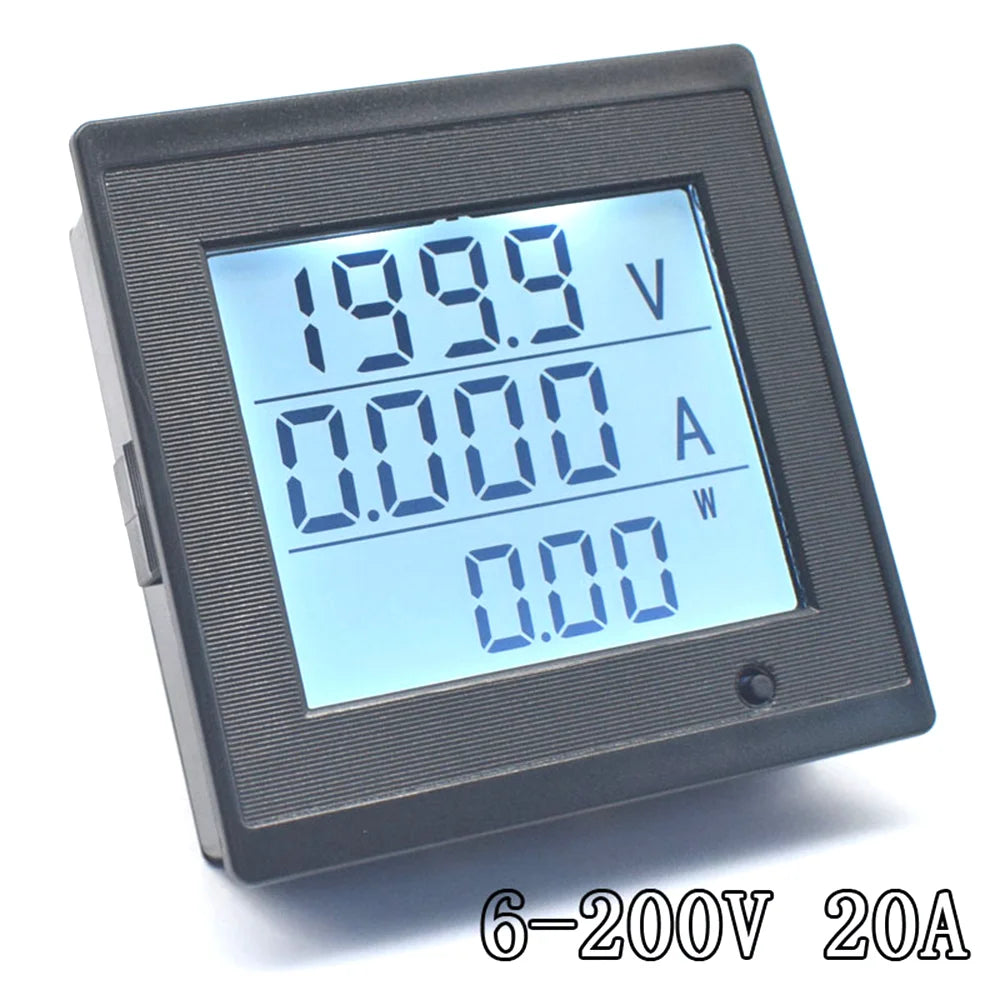

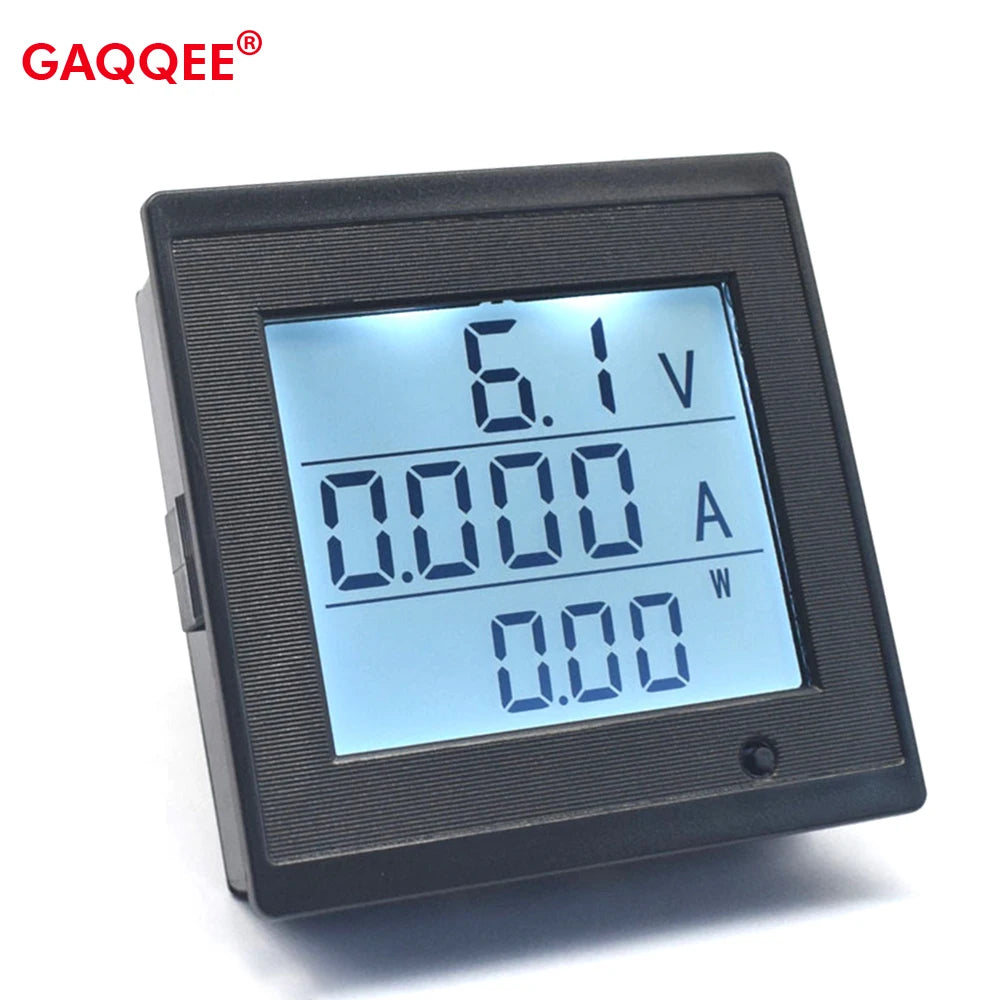

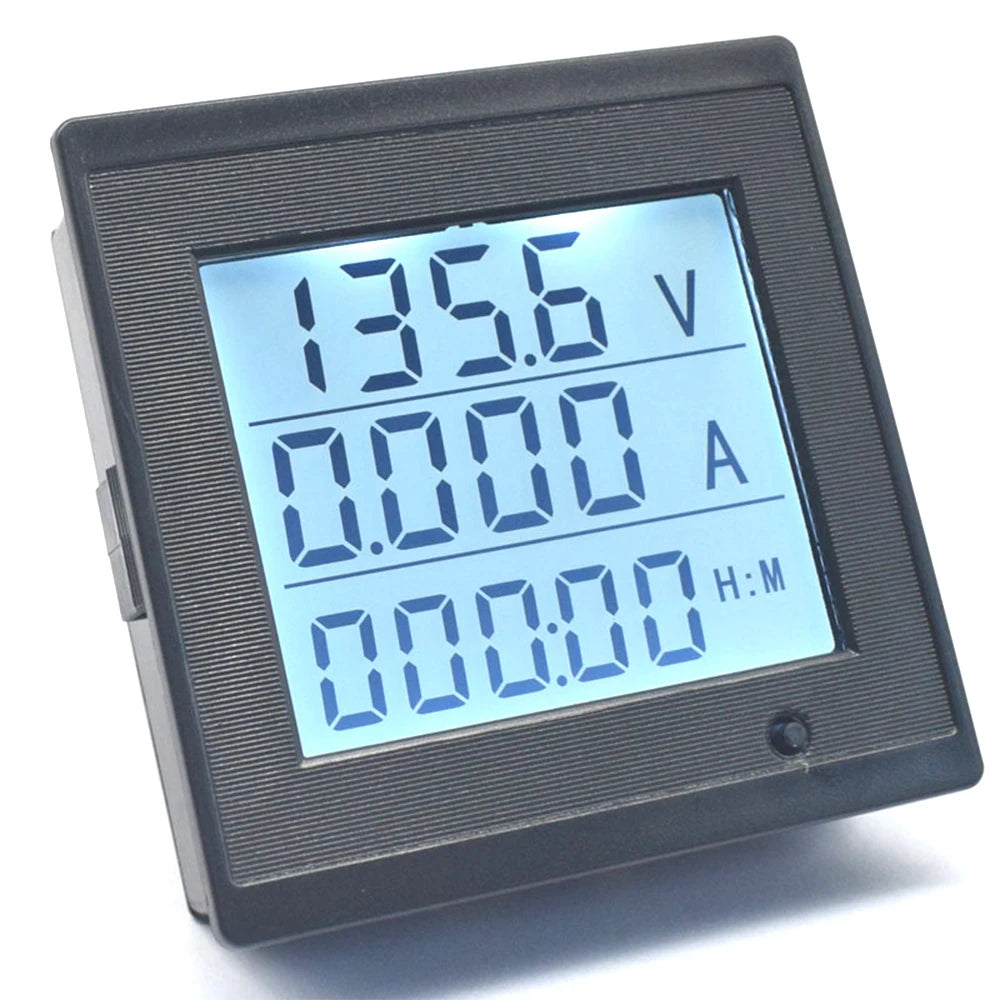

DC 6-200V 20A Voltage Current Meter LCD Digital Display Power Consumption Impedance Multi-Function Meter Tester Tools With Alarm

【Product features】

1. Electrical parameter measurement function (voltage, current, power, energy consumption, time, impedance)
2. Voltage alarm function (voltage alarm threshold exceeded, backlight and voltage flashing indication)
3. Overload alarm function (exceeding the power alarm threshold, backlight and power flashing prompt)
4. Power and time button zeroing function
5. Power down data saving function
6. Backlight function.

【Product parameters 】

Measuring voltage: DC6-200V
Measuring current: 0-20A
Measuring power: 0-4KW
Measuring energy consumption: 0-99999KW
Timing with load: 0-999 hours (overflow to zero)
Measuring impedance : 0-999Ω out of range display -
Overload alarm :settable
Voltage alarm :settable Overvoltage Undervoltage
Wiring type : Barrier type terminal block
Pressing method: Embedded

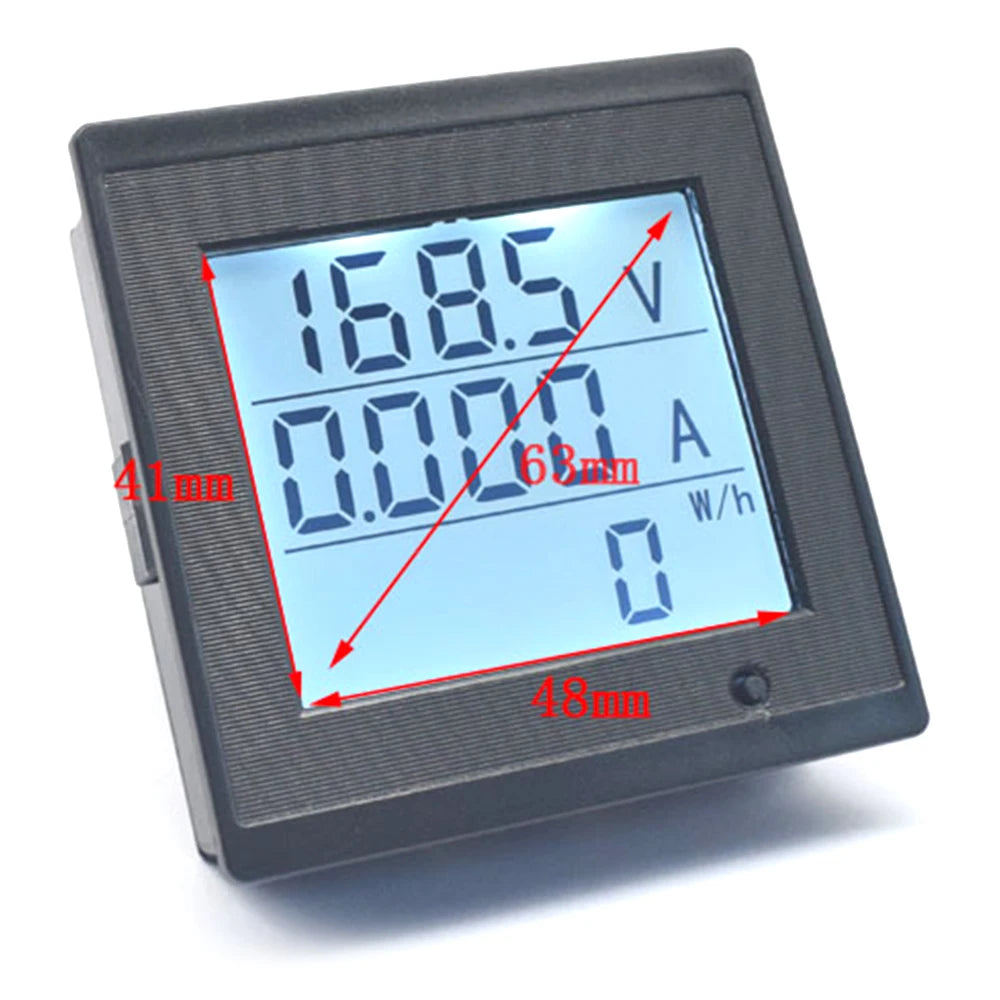

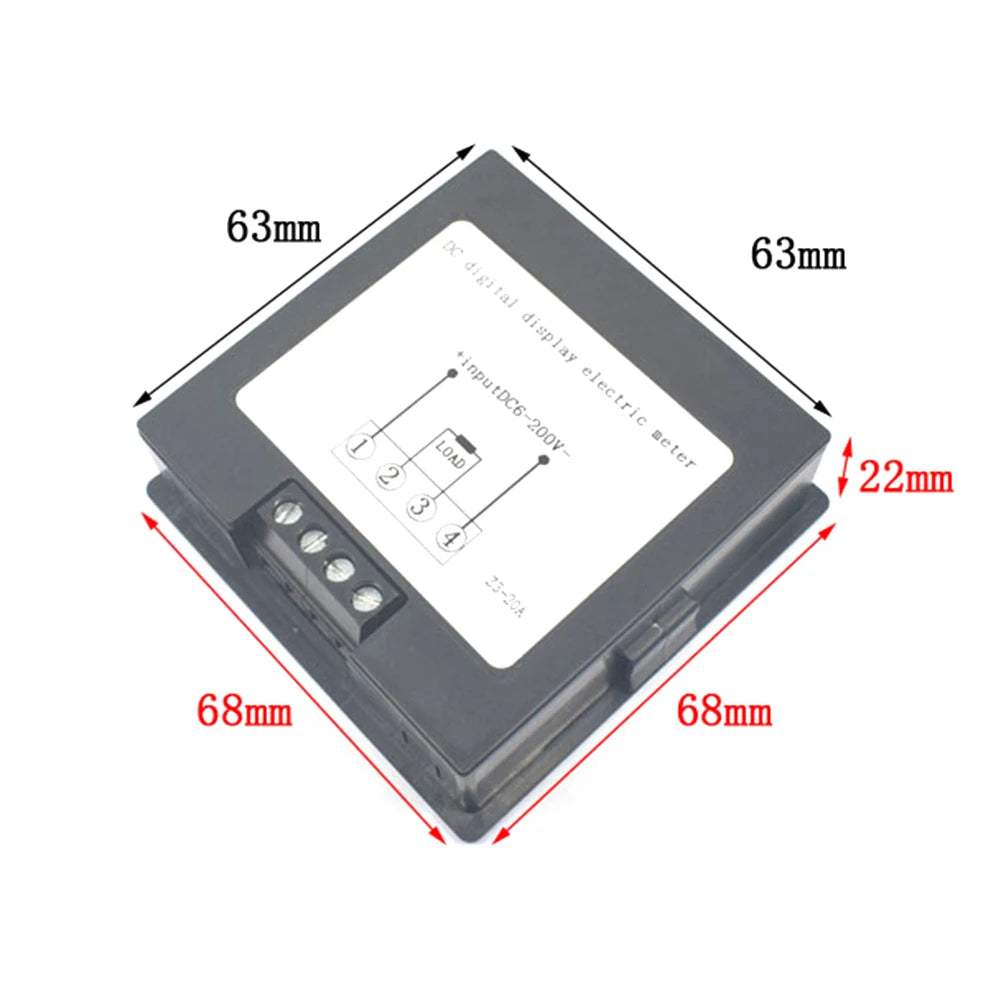

Module size: L*W*H 68mm*68mm*22mm
Product net weight: 58g
Panel opening: L*W 63mm*63mm

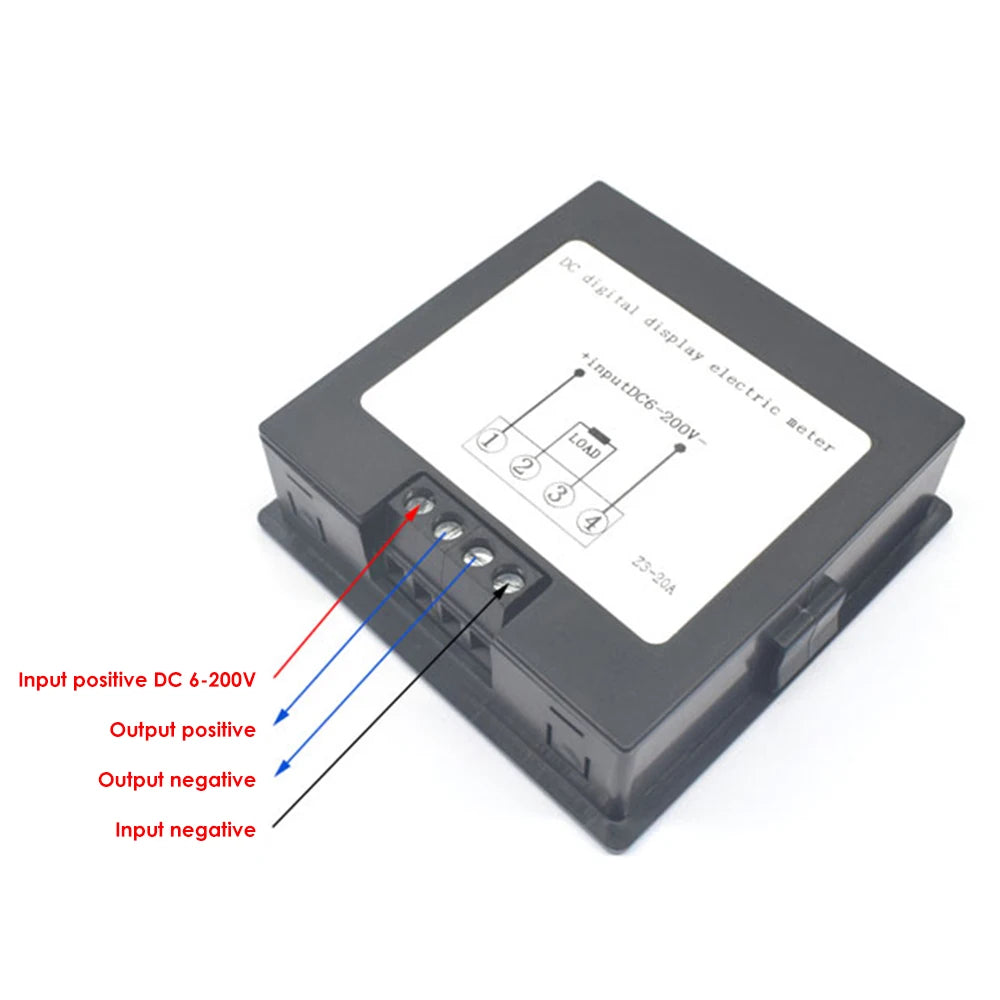

Note: Wiring must be divided into positive and negative, not input AC power

【Key Description】

1. Short press the button to switch power, energy consumption, time and impedance.
2. Backlight can be turned on or off by pressing the button two times quickly.
3. Press and hold for 6 seconds to enter the setting mode.
4. Long press for 3 seconds to shift to the next group.
5. Key does not release each group stay 2 seconds to automatically jump to the next group.
6. Without any operation, exit after 10 seconds and save the data.

【Product list】

Monitor x 1
