SPECIFICATIONS

Battery Type: Lithium Battery,Li-Polymer Battery

Brand Name: BASEUS

Capacity: 20000mAh/3.7V 74Wh

Certification: CE

Energy Conversion Rate: more than 75%

Features: Digital Display

Hign-concerned Chemical: None

Input Interface: Micro USB,USB Type C

Input for iP: 5V/2A, 9V/2A Max

Max Output: 20W

Micro Input: 5V/2A, 9V/2A Max

Model: PPADM20S

Model Number: PPADM20S

Origin: Mainland China

Output Interface: Double USB

Rated Capacity: 12000mAh

Shell Material: Metal

Support Quick Charge Technology: Two-way Quick Charge

Type: Portable Power Bank

Type C + USB 1 + USB 2 Output: 5V/3A Max

Type C + USB 1 Output: 5V/3A Max

Type C + USB 2 Output: 5V/3A Max

Type C Input: 5V/3A, 5.5V/3A, 9V/2A Max

Type C Output: 5V/3A, 9V/2A, 12V/1.5A Max

USB 1 + USB 2 Output: 5V/3A Max

USB 1 Output: 4.5V/5A, 5V/4.5A, 5V/3A, 9V/2A, 12V/1.5A Max

USB 2 Output: 4.5V/5A, 5V/4.5A, 5V/3A, 9V/2A, 12V/1.5A Max

weight: 480g

Q&A



Q: Why the battery capacity is 20000mAh, but the rated capacity is 12000mAh?



A: Because the input voltage of devices such as mobile phones is 5V. Inside the power bank, the original 3.7V will be boosted to 5V before output.

So the output capacity is 14800mAh ( 3.7V*20000mAh/5V=14800mAh).

There will be energy loss in the step-up and step-down process, and the energy conversion rate: more than 75%.

Finally, the rated capacity is about 12000mAh. (14800mAh*75%≈12000mAh).

Product specification

Capacity:20000mAh/3.7V 74Wh

Rated Capacity: 12000mAh

Energy Conversion Rate: more than 75%

Micro Input: 5V/2A, 9V/2A Max

Type C Input: 5V/3A, 5.5V/3A, 9V/2A Max

USB 1 Output: 4.5V/5A, 5V/4.5A, 5V/3A, 9V/2A, 12V/1.5A Max

USB 2 Output: 4.5V/5A, 5V/4.5A, 5V/3A, 9V/2A, 12V/1.5A Max

Type C Output: 5V/3A, 9V/2A, 12V/1.5A Max

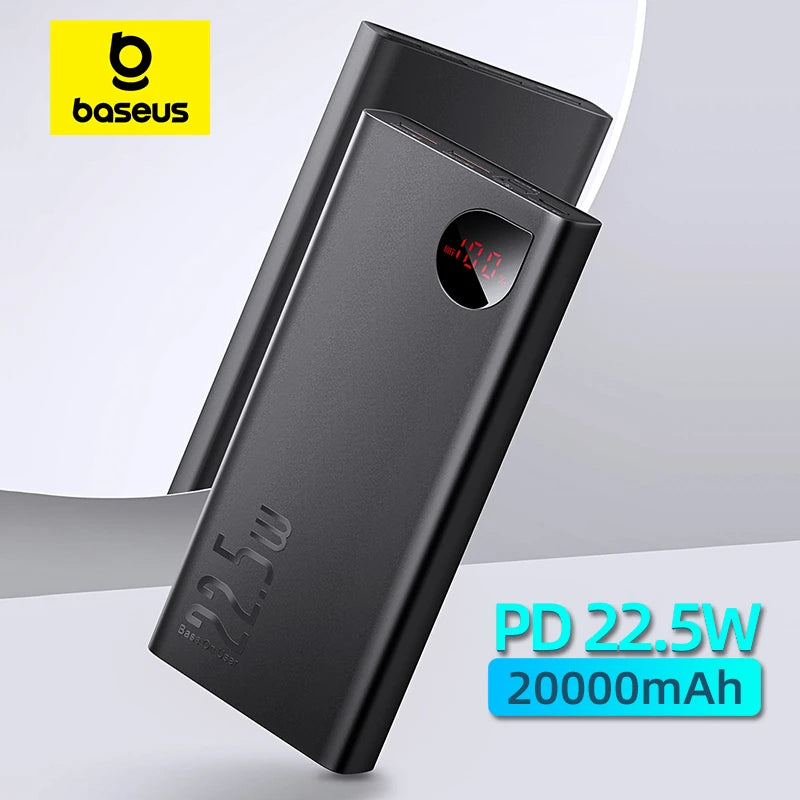

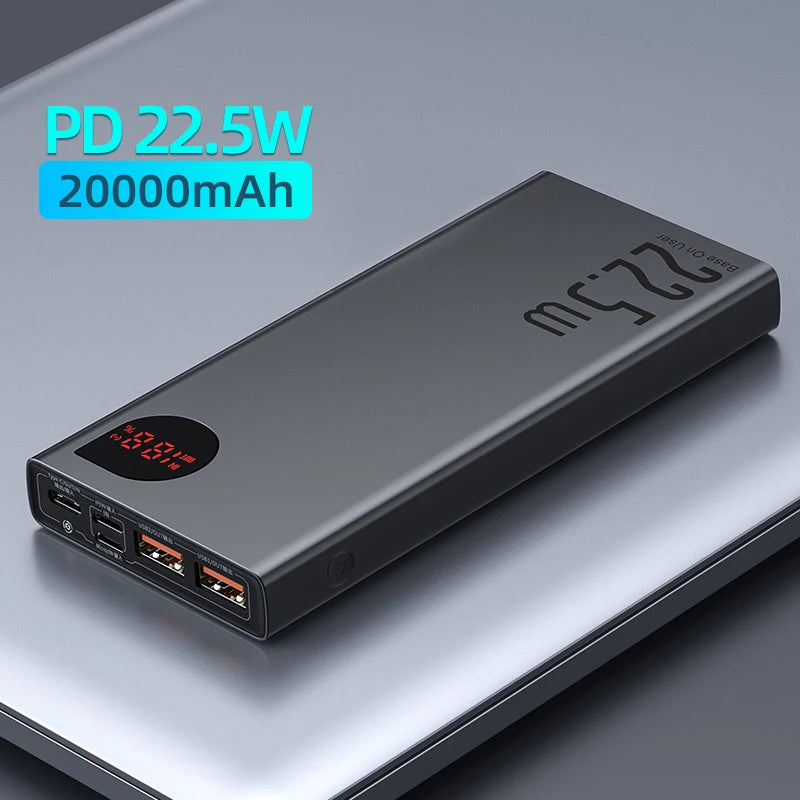

Portable Fast Charging Powerbank

· 22 5W high power quick charge
· Battery capacity of 20000mah
· PD3.0+QC3.0 two-way quick charge
· Real-time display of charging current , voltage and battery level
· Support quick charging protocols such as PD3.0, QC3.0, FCP, AFC, MTK, etc

Metal Shell Shows the Sense of Light Luxury

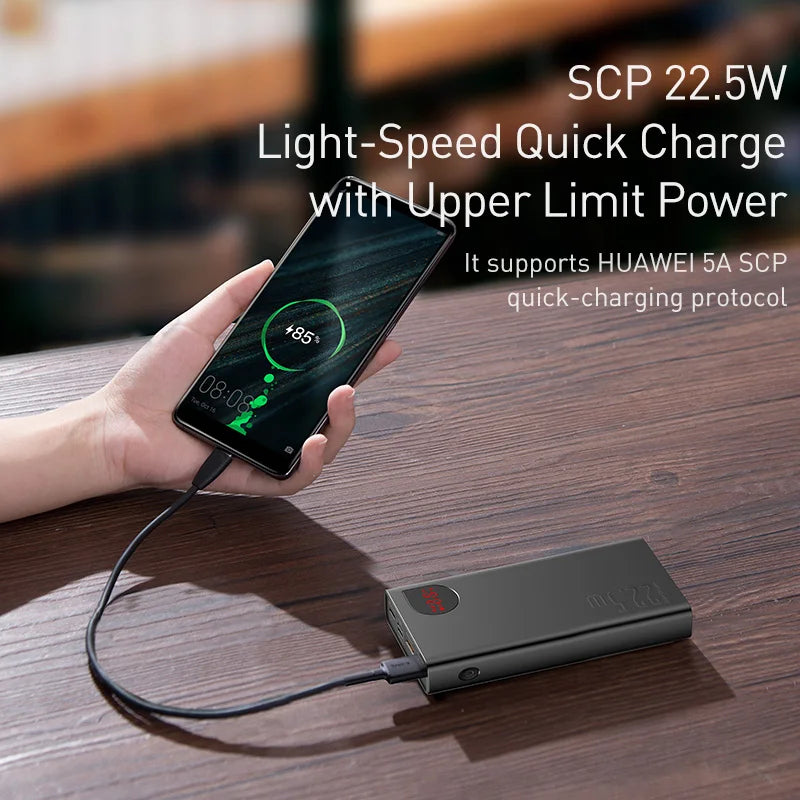

SCP 22.5W Light-speed Quick Charge with Upper Limit Power

It supports ForHUAWEI 5A SCP quick-charging protocol

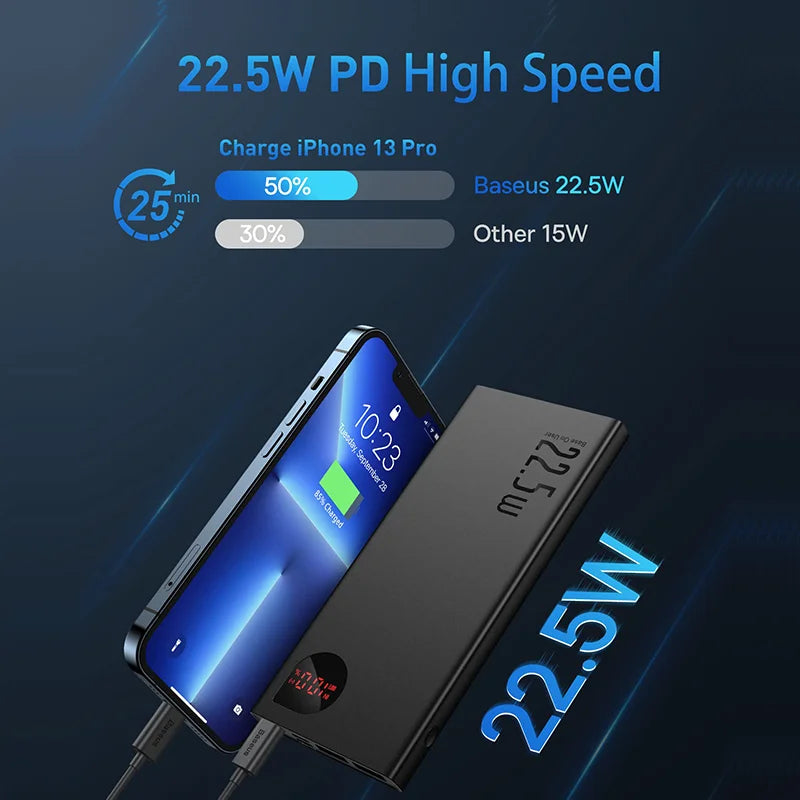

Quick Charging for IP Mobile Phone

About 30 minutes can charge 50% of the power for IPX

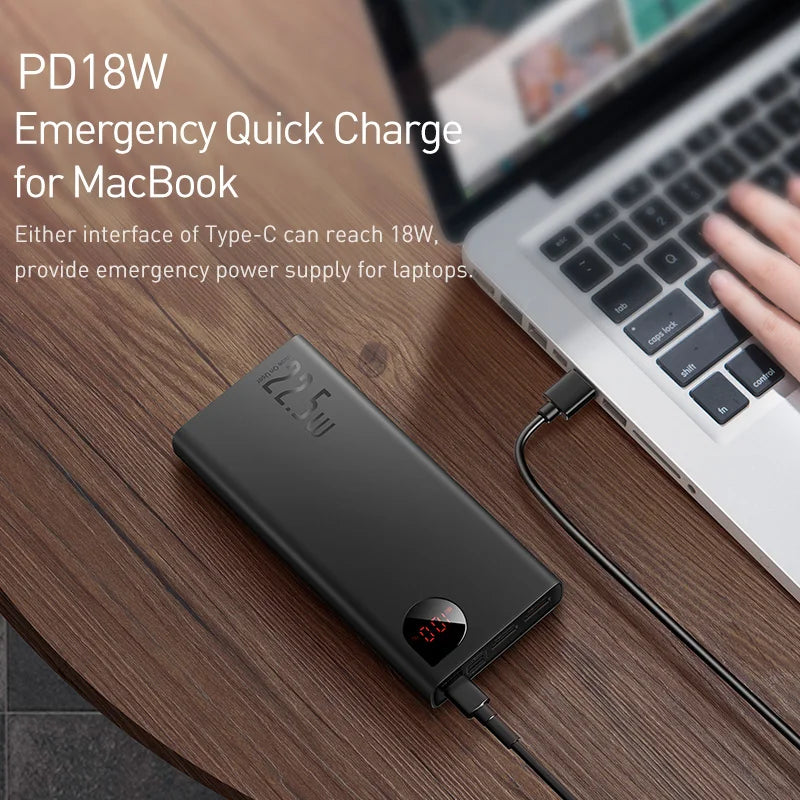

PD18W Emergency Quick Charge for Macbook

Note : Quick charging requiresoriginal C-C charging cable

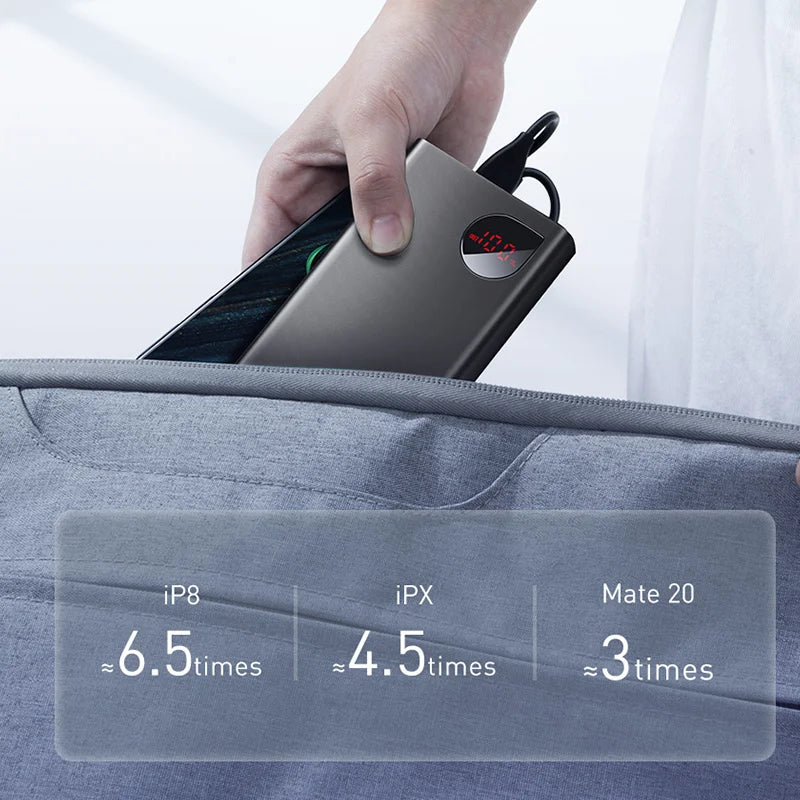

Charging Several Times when traveling

4-5 Hours Full of Power Bank

It supports PD3.0 + QC3.0 two-way quick charge

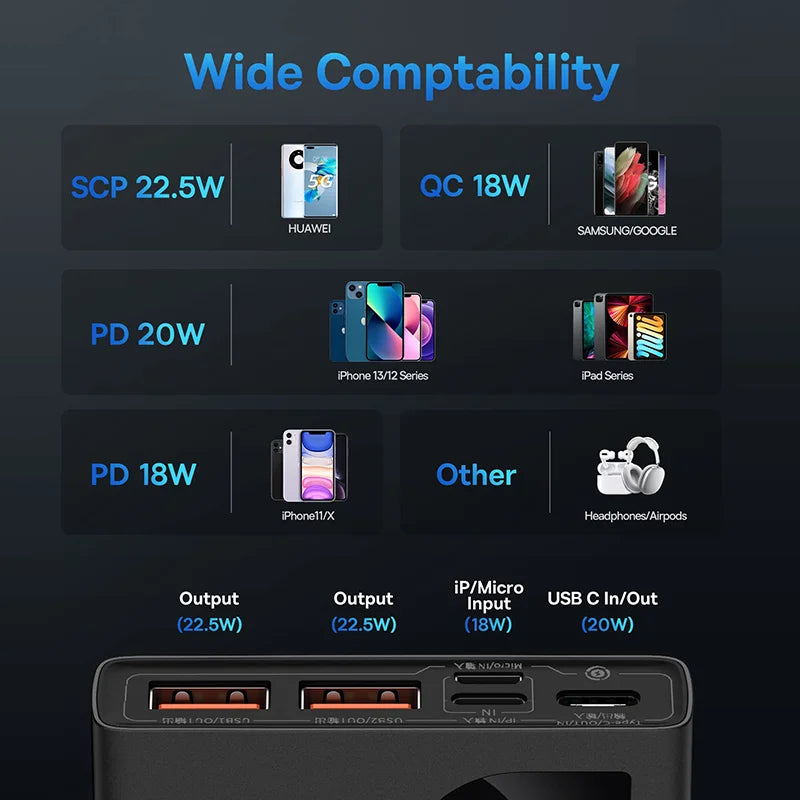

Compatible with Various Mobile Phones

It can quickly charge for IP , Mi , Huawei , Samsung and other mobile phones

Charge or Storage with One Line

three input interfaces and three output interfaces

LED digital screen displays

Display current/voltage/battrey level

Intelligent Shunting , Faster and Safer
