Please attention: our order is just including solar pump, not including solar panel, please buy solar panel seperately.
Introduction
The DC solar submersible pump adapt to the characteristic weather profile of any given area. A battery backup system can store the extra energy generated and take over when the energy from nature is not available.

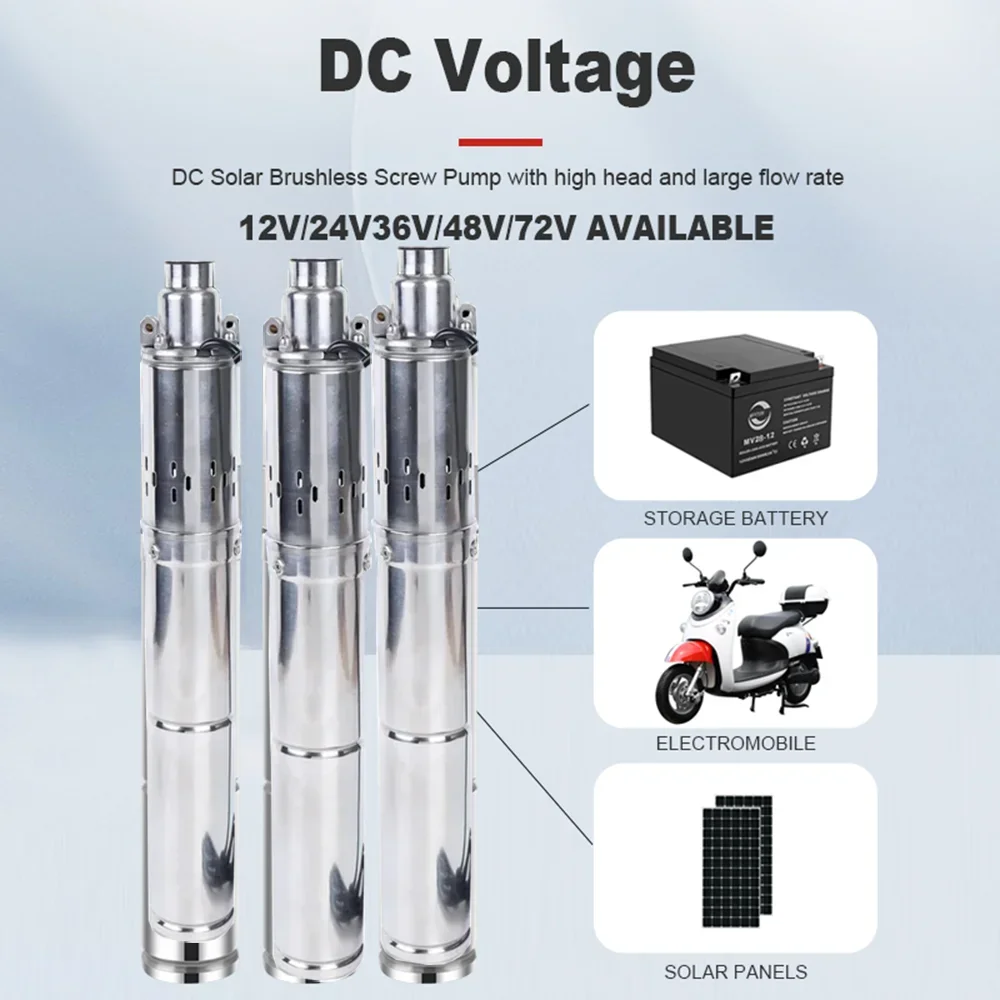

Dc solar submersible pump is more than just a pump -it's a complete intelligent system. Thanks to its built-in electronics, the DC solar submersible pump can be directly connected to the solar panels or batteries without requiring an external inverter.

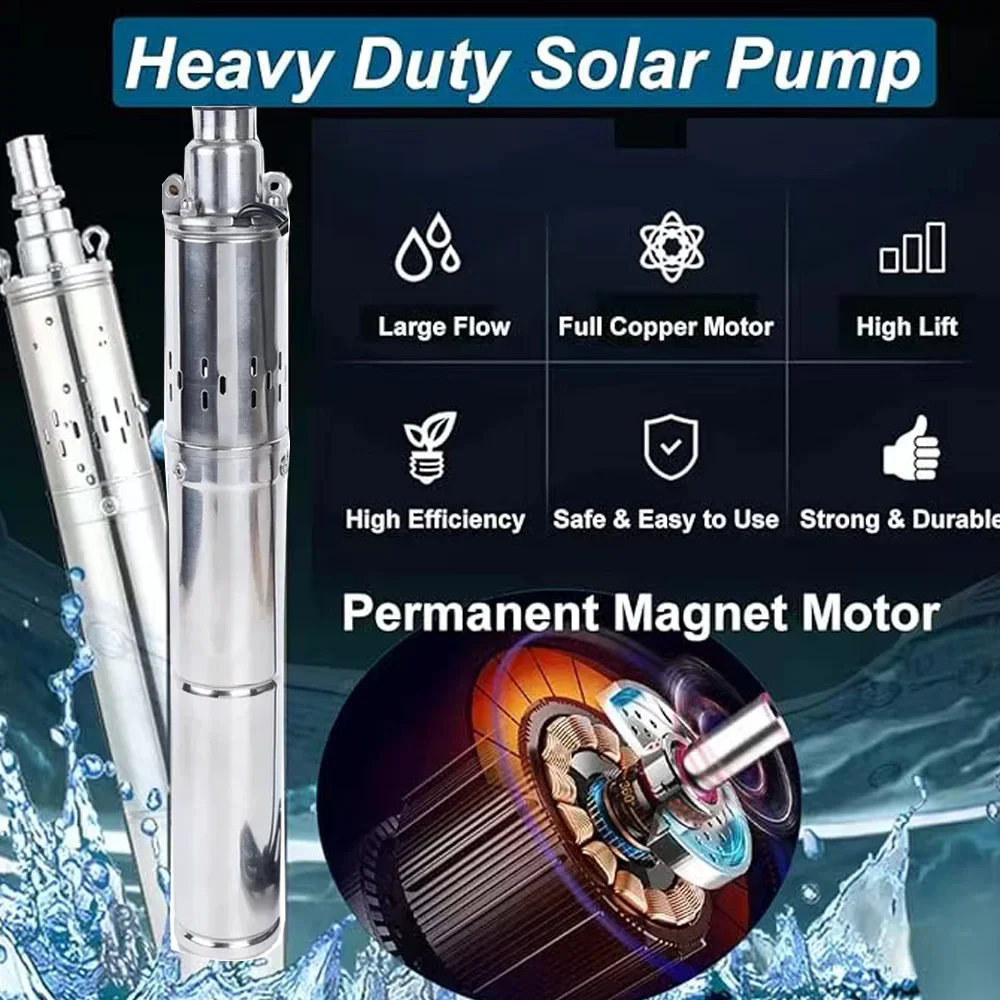

Features
- Safety insulation
- Strong power
- DC diving
- Good mute effect
- Screw Pump: more powerful, fast speed, effectively increase the head flow
- This is a non-toxic, non-polluting, noiseless solar water pump
- The pump is easy to install, can connect to the solar panel directly.
- Suitable for using in ships, fishing boats, fish ponds, agricultural irrigation and etc.
- It uses car power, energy saving and environmental protection.
- High lift, large flow, small size, easy to carry.
- Low power consumption, energy saving and emission reduction.
Note:
The normal use conditions of this pump: 1. Voltage is matched. 2. The positive and negative poles are connected correctly. If the pump does not work, Please check the following two points : (1) Whether the electricity is sufficient. (2) Whether the positive and negative poles are connected in right way, or the screw is loose.
The configuration of a reasonable solar panel for the pump mainly considers two parameters: power and voltage. Relative to the pump power, you can configure the solar panel by 1.5-2 times.
For example: If the rated power of pump is 200W, then install 300-400W solar panel is workable. If the power of the solar panel is much larger than 2 times the pump power, the pump can still work normally as long as the output voltage of the solar panel is within the safe range.

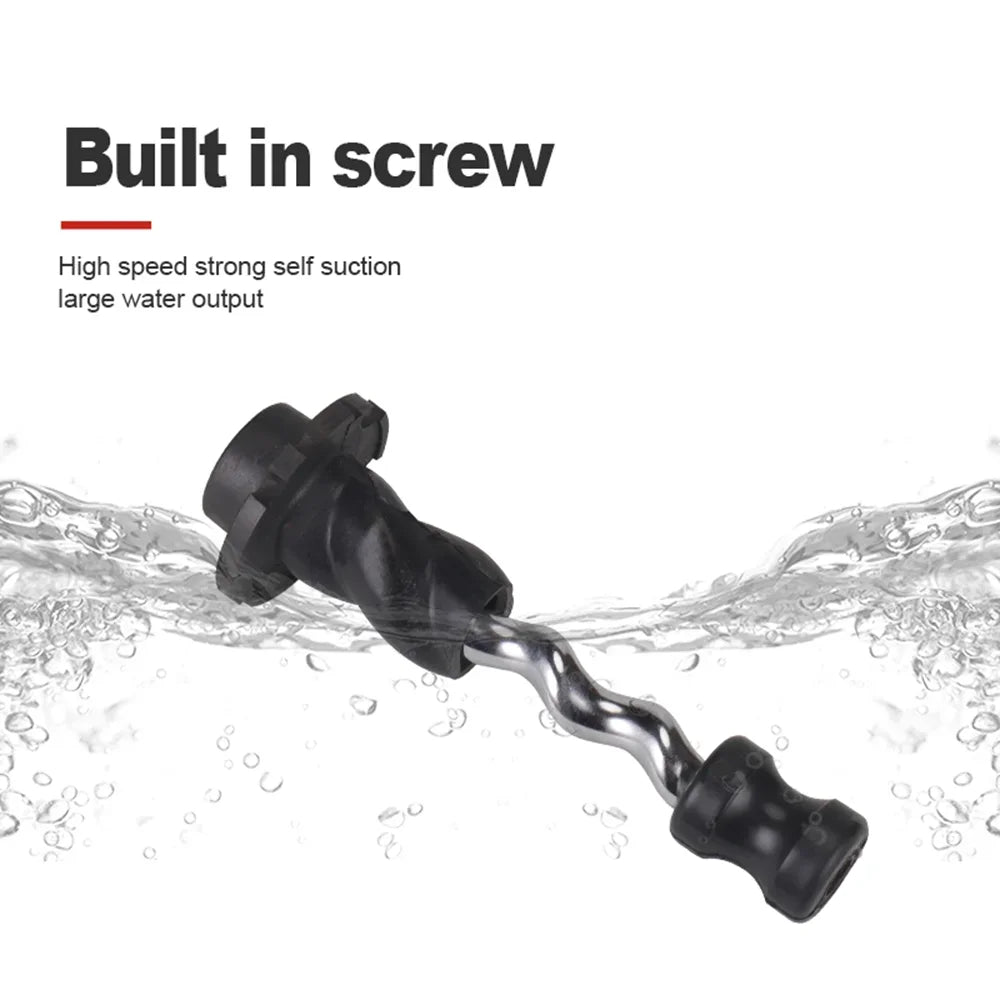

Please attention: our screw is ready in built in pump body, so you don't need to install it by yourself, there is not extra screw in parcel.

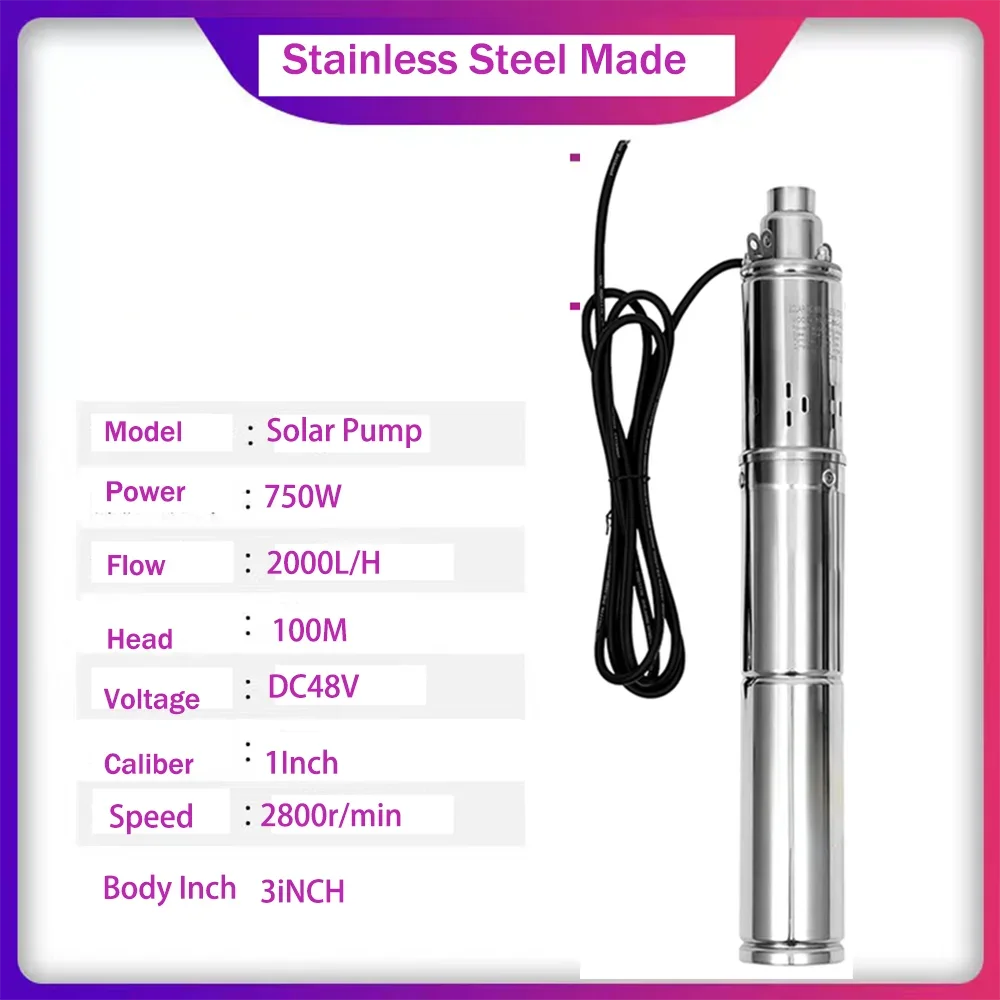

Product parameter
Bilt-in controller Solar DC Screw deep well Pump |
NO. |
Model |
Pump |
Max Flow |
Max Head |
Outlet |
Outer |
Impeller |
Power |
Voltage |
(M3/H) |
(M) |
(IN) |
(MM) |
1 |
DC12V-150W |
Screw |
150 |
DC12V |
2 |
35 |
1" |
25 |
2 |
DC24V-370W |
Screw |
370 |
DC24V |
2 |
65 |
1" |
25 |
3 |
DC48-72V-750W |
Screw |
750 |
DC48-72V |
2 |
100 |
1" |
25 |
Solar &. Voltage matching table |
|
NO. |
Model |
Pump |
Recommend Solar |
12V Battery |
W |
DC |
Solar Panel |
Series |
Vmp |
Solar QTY |
Voc |
Series |
1 |
DC12V-150W |
150 |
DC12V |
200-300W |
2*1PCS |
1*18V |
2 PCS |
<32V |
1*1 PCS |
2 |
DC24V-370W |
350 |
DC24V |
500-750W |
1*2PCS |
2*30V |
2 PCS |
<72V |
1*2 PCS |
4 |
DC48-72V-750W |
750 |
DC48-60V |
1000-1500W |
2*2PCS |
2*30V |
2 PCS |
<72V |
1*(4-5)PC |
Package included:
1 x water pump

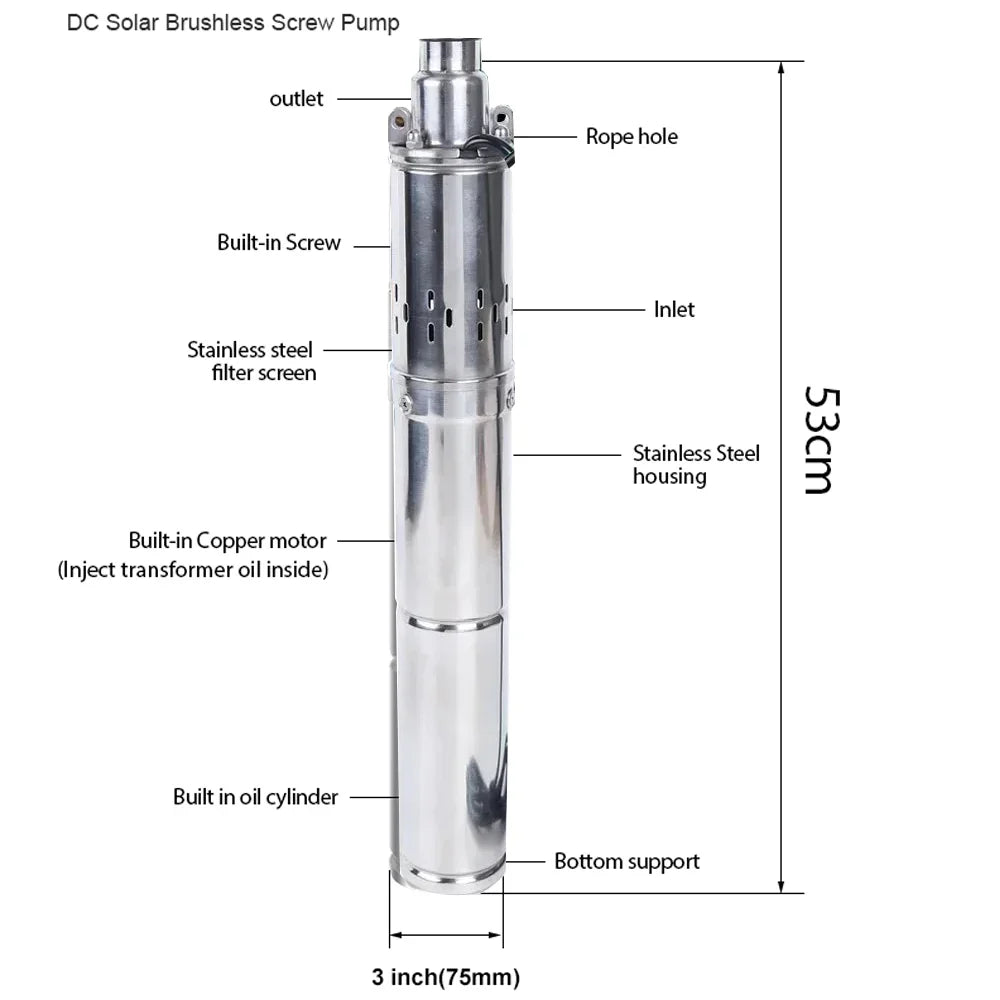

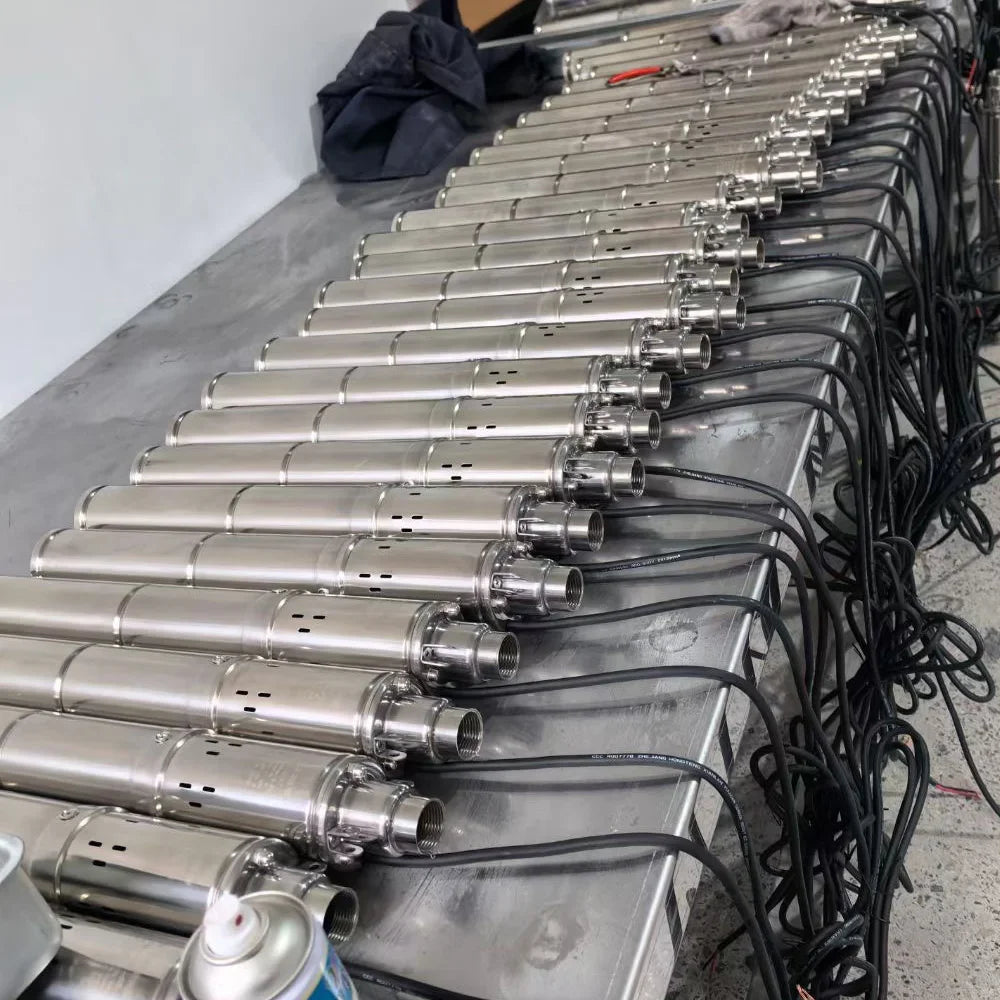

Product picture
