Features:

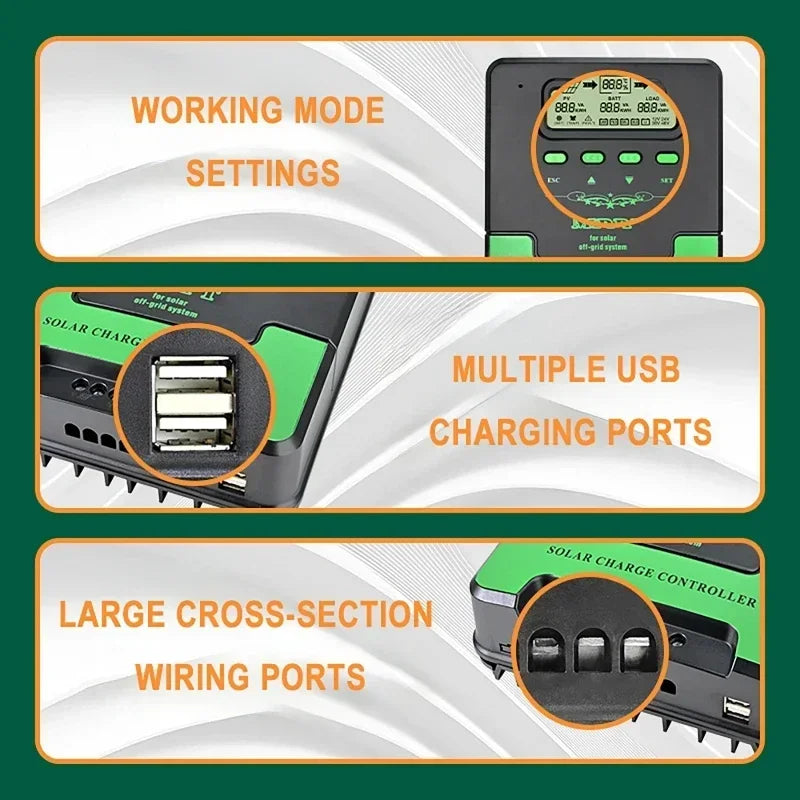

* LCD display: LCD display setting is adopted, and the display timing setting corresponds to the LCD display, which can clearly observe the operation status of the equipment and facilitate the modification and setting of the operation parameters.

* Large-section wiring port: The wiring port with large cross-section and large spacing is adopted to increase the insulation performance and installation reliability, effectively reduce the circuit voltage drop and reduce consumption.

* Multiple USB charging ports: Support most USB port devices on the market, mobile phones, tablet computers, PSP game consoles, etc.

* Wide range of applications: Suitable for solar street lights, solar roofs, solar billboards, solar power generation systems, solar RVs, and solar awnings.

Specification:

Name: Solar controller

System voltage: 12V/24 self-identification

No-load consumption: ≤0.4W

Maximum solar input voltage: 50V VOC/VOC 100V

Battery voltage: 9-32V

Maximum power voltage range: Battery Voltage +2V~50V/Battery Voltage +2V~100V

Rated charging current: 10A,20A,30A,40A,50A,60A

Rated load current: 20A

USB output: 5V/3A

Conversion efficiency: ≤98%

MPPT tracking efficiency: ＞99%

Temperature compensation coefficient: -2mv/℃/2V

Working temperature: -10℃~+65℃

Protection level: IP21

Color: black + green

Packing included:

1 x Solar controller

Note:

1. Due to manual measurements and slight color variations, please allow 1-3 cm (0.4-1.18 inches) difference to suit different display settings.

2. Due to the light and screen difference, the item's color may be slightly different from the pictures. Please understand.
